Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper(A) and lower(B) shrouds after removing 3 screws.

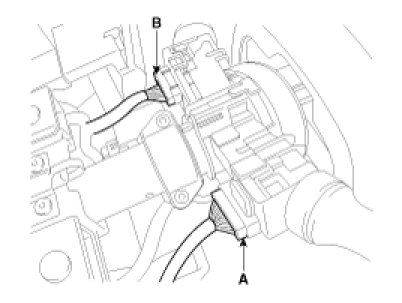

3. Disconnect the light switch connector(A) and the wiper switch connector(B).




4. Remove the wiper switch(A) by pushing the lock pin(B).

NOTE:
when removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.

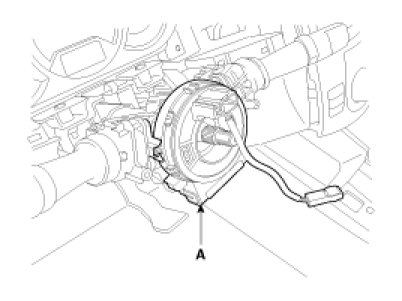

5. Remove the clock spring(A).

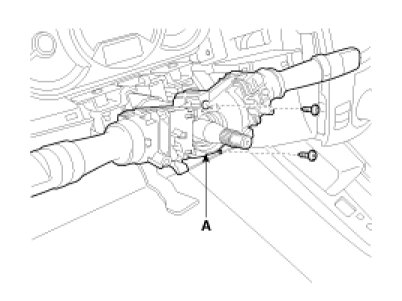

6. Loosen the screws from the multifunction switch assembly(A).




7. Remove the multifunction switch assembly(A).

Installation

1. Install the multifunction switch.
2. Install the clock spring.
3. Install the steering column upper and lower shrouds.
4. Install the steering wheel.
