Cabin Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.(refer to BD group-crash pad)

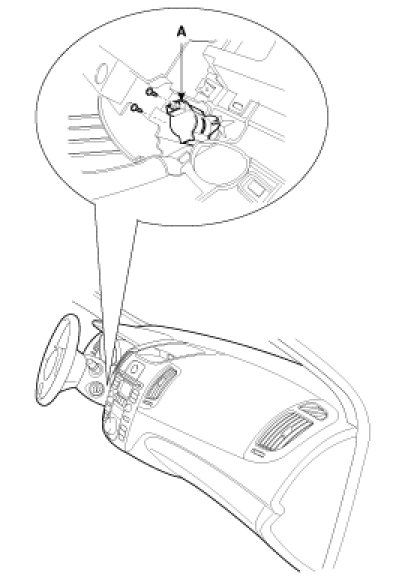

3. Disconnect the connector of in-car sensor (A).Loosen the mounting 2 screws and then remove the in-car sensor.




4. Installation is the reverse order of removal.
