Ignition Switch: Testing and Inspection

Inspection

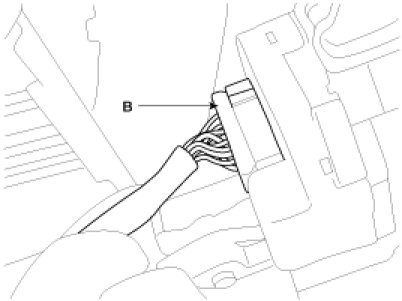

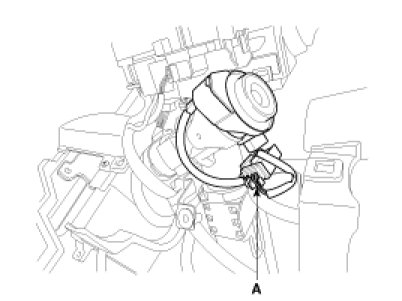

1. Disconnect the ignition switch connector(B) and key warning switch connector(A) from under the steering column.

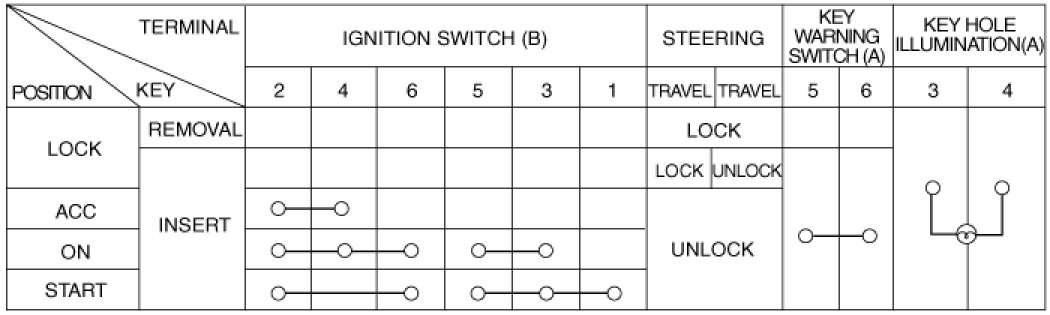

2. Check for continuity between the terminals.
3. If continuity is not specified, replace the switch.
