Repair procedures: Installation

Install the new O-ring to the input speed sensor.
Install the input speed sensor (A).
Tightening torque:

10~12Nm (1.0~1.2kgf.m, 7~8lb-ft)

CAUTION: While installing the input shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.

Fig 1: Identifying Input Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Check the connector for dust, dirt, or oil, and then connect the input speed sensor connector (A) securely.

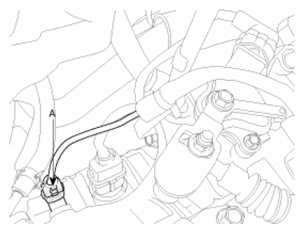

Fig 2: Identifying Input Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
