Signal Waveform & Data

Connect scantool and select Data Analysis.
After warming-up, check following items.

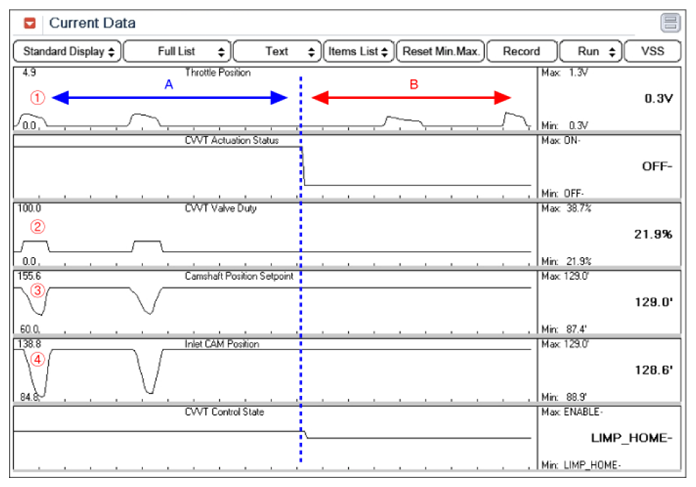

Fig 1: Scantool Screen Display - Signal Waveform & Data
Courtesy of KIA MOTORS AMERICA, INC.
Data analysis
- A Sector: CVVT works
- B Sector: Limp Home Mode (CVVT doesn't work.)
- CVVT Control Flow (A Sector)
: Acceleration pedal ( ) shift → Engine RPM change → Camshaft Position Setpoint ( ) change → CVVT Valve Duty ( ) change → Inlet CAM Position ( ) change
