Start / Stop Switch: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.

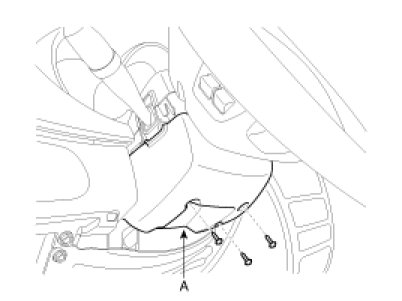

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.




3. Remove the start/stop button (A) after loosening a mounting screw and connector.




Installation

1. Install the connector.
2. Install the start/stop button.
3. Install the steering column upper and lower shrouds.
