Rio Base
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
BCM (Body Control Module)
>>
Body Control Module
>>
Schematic Diagrams - Revised
>>
Circuit Diagram
>>
BCM & Receiver
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BCM & Receiver

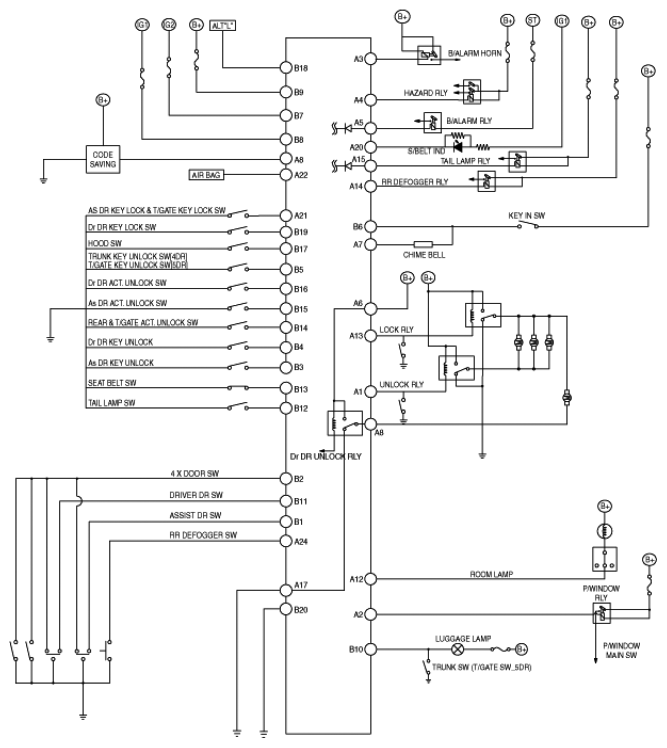

Fig 1: BCM & Receiver Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
