BCM Connector Terminals

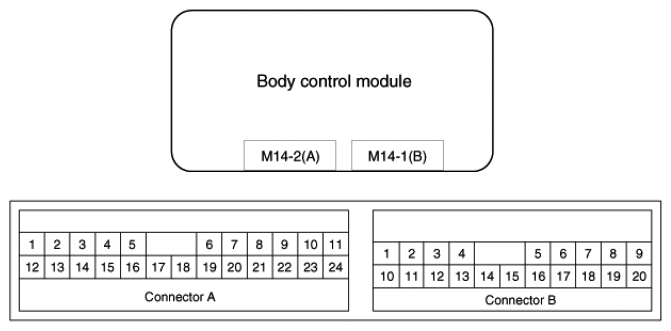

BCM CONNECTOR TERMINALS REFERENCE
| Terminal No. | Connector A | Connector B |
|---|---|---|
| 1 | Door unlock relay | Assist door switch |
| 2 | Power window relay | 4 door switch |
| 3 | Burglar alarm horn relay | Assist door key unlock switch |
| 4 | Hazard lamp relay | Driver door key unlock switch |
| 5 | Burglar alarm relay | Trunk key unlock switch (4Doors), Tail gate key unlock switch (5Doors) |
| 6 | B+ | Door warning switch |
| 7 | Chime bell | IG2 |
| 8 | Code saving | IG1 |
| 9 | - | B+ |
| 10 | - | Trunk switch (4Doors), Tail gate switch (5Doors) |
| 11 | Seat belt switch | Driver door switch |
| 12 | Room lamp switch | Tail lamp switch |
| 13 | Door lock relay | - |
| 14 | Rear defogger relay | Rear door actuator unlock switch (4Doors), Rear door & tail gate actuator unlock switch (5Doors) |
| 15 | Tail lamp relay | Assist door actuator unlock switch |
| 16 | - | Driver door actuator unlock switch |
| 17 | Ground | Hood switch |
| 18 | Driver door unlock actuator | Alternator (L) |
| 19 | - | Driver door key lock switch |
| 20 | Seat belt indicator | Ground |
| 21 | Assist door key lock switch | - |
| 22 | Air bag signal (Crash signal) | - |
| 23 | Rear fog lamp switch (EC, Australia) | - |
| 24 | Rear defogger switch | - |
BCM CONNECTOR TERMINALS REFERENCE
| Terminal No. | Connector A | Connector B |
|---|---|---|
| 1 | Door unlock relay | Assist door switch |
| 2 | Power window relay | 4 door switch |
| 3 | Burglar alarm horn relay | - |
| 4 | Hazard lamp relay | - |
| 5 | Burglar alarm relay | Trunk key unlock switch (4Doors), Tail gate key unlock switch (5Doors) |
| 6 | - | Door warning switch |
| 7 | Chime bell or chime buzzer | IG2 |
| 8 | Code saving | IG1 |
| 9 | Front fog lamp switch (EC, Australia) | B+ |
| 10 | Head lamp switch (EC, Australia) | Trunk switch (4Doors), Tail gate switch (5Doors) |
| 11 | Seat belt switch | Driver door switch |
| 12 | Room lamp switch | Tail lamp switch |
| 13 | Door lock relay | Speed sensor |
| 14 | Rear defogger relay | Rear door actuator unlock switch (4Doors), Rear door & tail gate actuator unlock switch (5Doors) |
| 15 | Tail lamp relay | Assist door actuator unlock switch |
| 16 | Key hole illumination | Driver door actuator unlock switch |
| 17 | - | Hood switch |
| 18 | - | Alternator (L) |
| 19 | Rear fog lamp relay (EC, Australia) | - |
| 20 | Seat belt indicator | |
| 21 | - | - |
| 22 | Air bag signal (Crash signal) | - |
| 23 | Rear fog lamp switch (EC, Australia) | - |
| 24 | Rear defogger switch | - |
