Engine Control System Diagnosis (1 Of 2)
>>
DTC P0123: Throttle/Pedal Position Sensor/Switch A Circuit High Input
>>
General Information
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

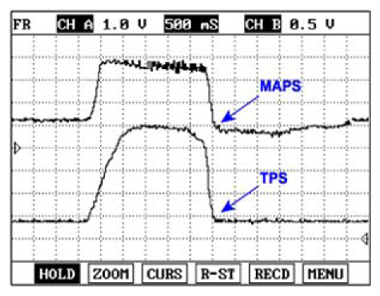

Fig 1: Throttle Position Sensor - Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
