TPS Circuit Inspection

Ignition "OFF"
Disconnect TPS connector
Ignition "ON"
Measure voltage between terminal "1", "2" and "3" of sensor harness connector and chassis ground
1. Specification :
  terminal "1" Approx. 5V

  terminal "2" Approx. 5V

  terminal "3" 0V

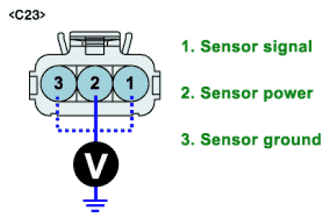

  Fig 1: Measuring Voltage Between Terminal 1, 2 And 3 Of Sensor Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specifications?
YES
1. Go to "COMPONENT INSPECTION " procedure
NO
1. Check for open or short in signal harness. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
