Rondo EX, 2.4 9
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Control Module
>>
SRS Control Module (SRSCM)
>>
Description & Operation
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

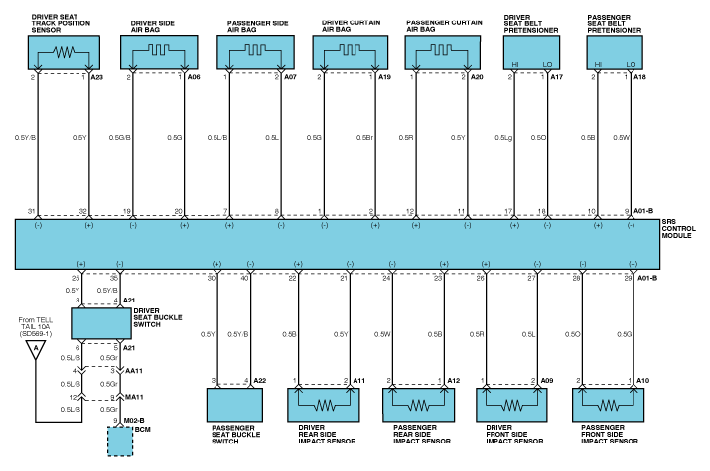

Fig 1: SRS Control Module Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

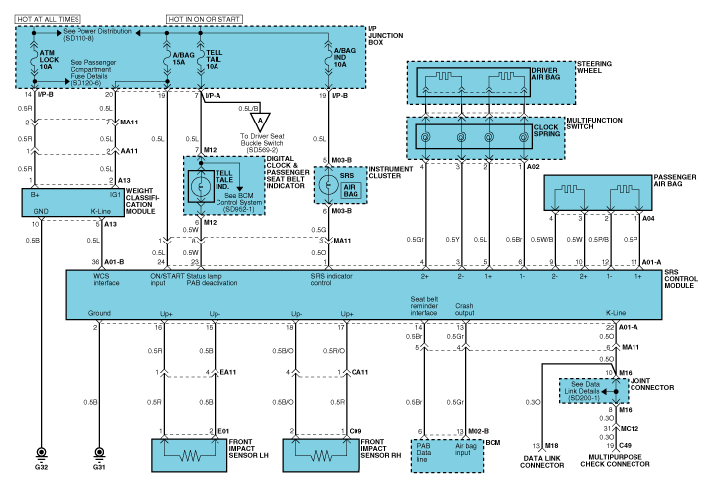

Fig 2: SRS Control Module Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
