Basic Troubleshooting Guide
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Basic Troubleshooting Guide

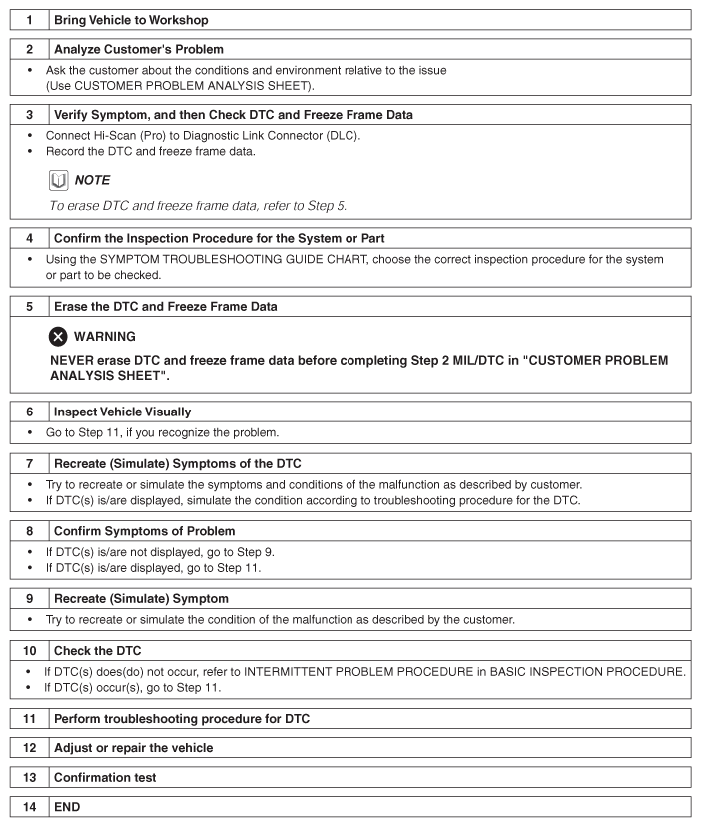

Fig 1: Basic Troubleshooting Guide Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
