Monitor Scantool Data

  1. Connect scantool to Data Link Cable (DLC)
  2. Warm up engine to normal operating temperature
  3. Monitor "MAPS" parameter on the scantool.

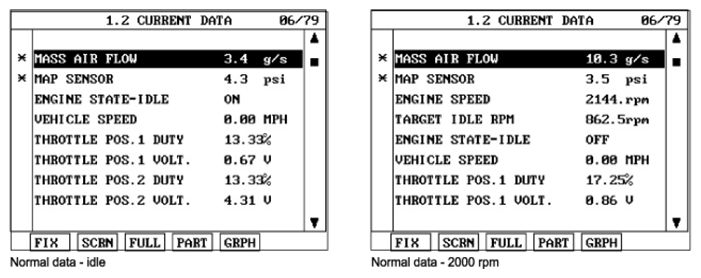

    Fig 1: Scantool Display - Current Data (1 Of 2)
    G06837051Courtesy of KIA MOTORS AMERICA, INC.

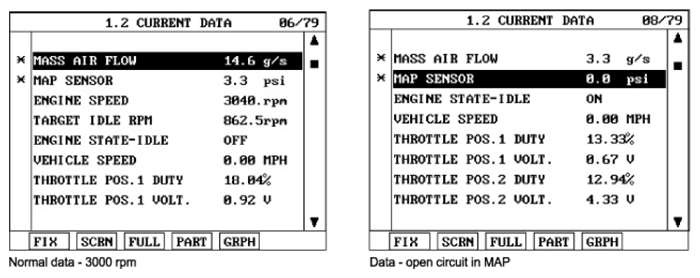

    Fig 2: Scantool Display - Current Data (2 Of 2)
    G06837052Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the current data displayed correctly?

    YES

    • Fault is intermittently caused by poor contact in the sensor and/or PCM connector or non cleared PCM memory after repair. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace if necessary and go to "VERIFICATION OF VEHICLE REPAIR ".
