Circuit Diagram (3)

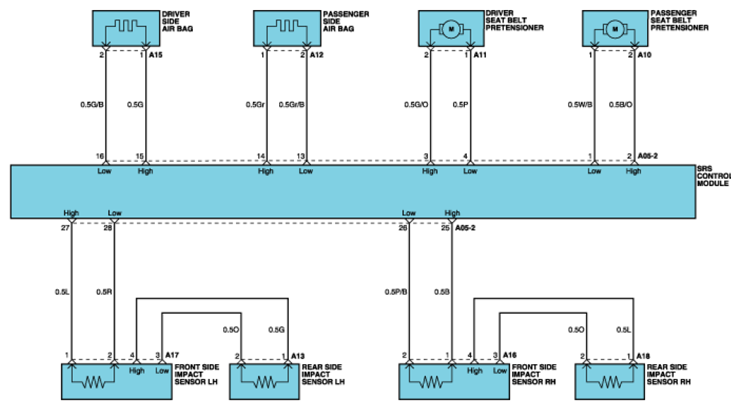

Fig 1: SRS Control Module - Circuit Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
