Components and Components Location: Components

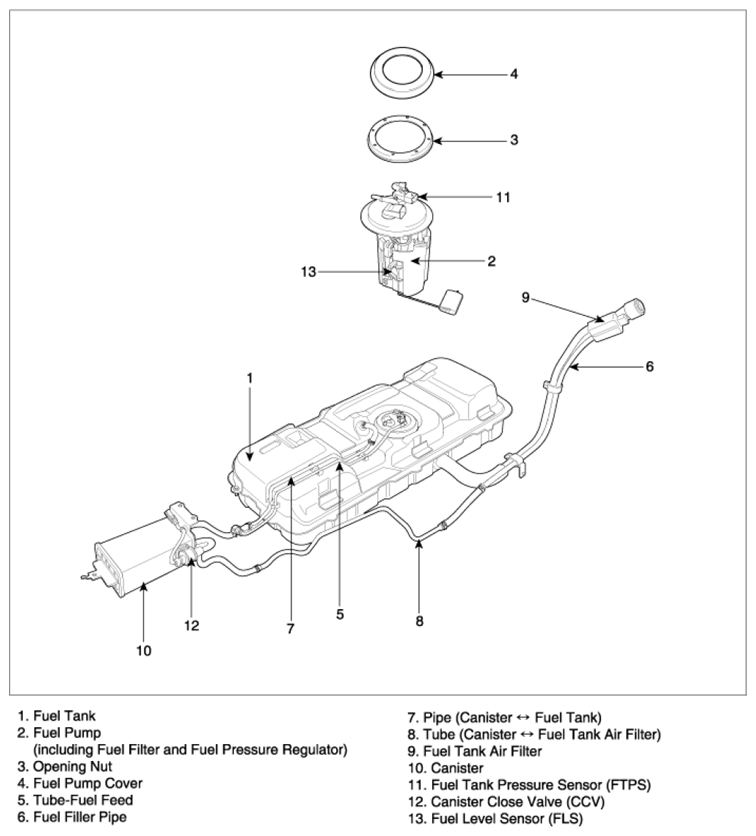

Fig 1: Identifying Fuel Delivery System Components
G06843597Courtesy of KIA MOTORS AMERICA, INC.
