Engine Control System Diagnosis (1 Of 3)
>>
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
>>
General Information
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

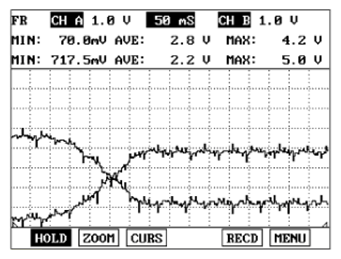

Fig 1: TPS Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

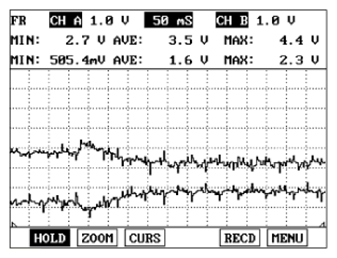

Fig 2: TPS Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
