Engine Control System Diagnosis (3 Of 3)
>>
DTC P0685: ECM/PCM Power Relay Control Circuit/Open
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

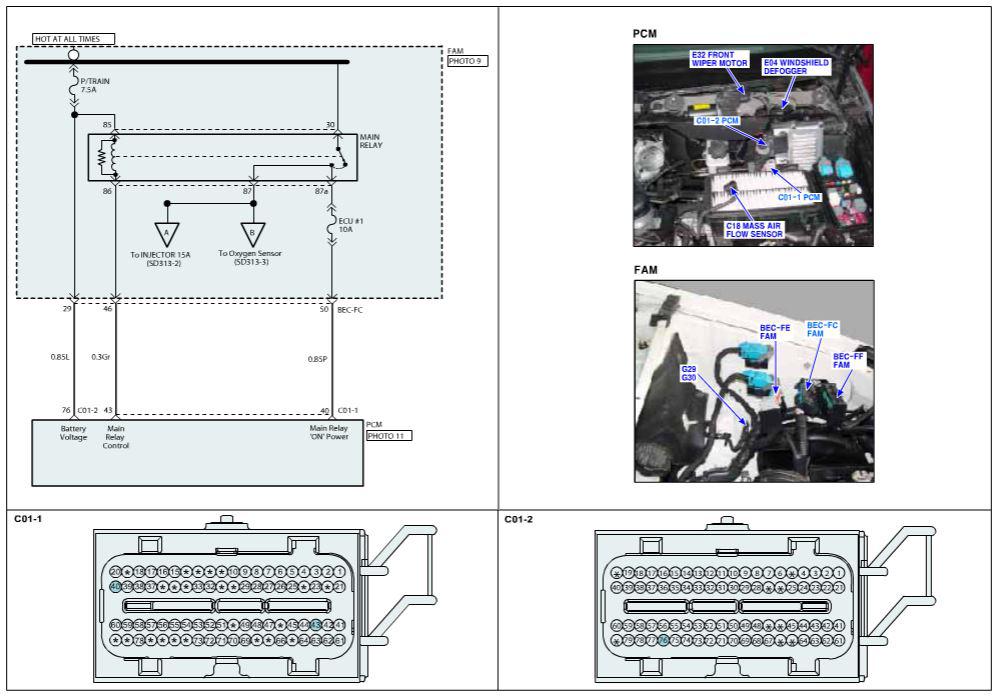

Fig 1: ECM/PCM Power Relay Control Circuit/Open - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
