Engine Control System Diagnosis (3 Of 3)
>>
DTC P2123: Accelerator Position Sensor 1 Signal Circuit High Input
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

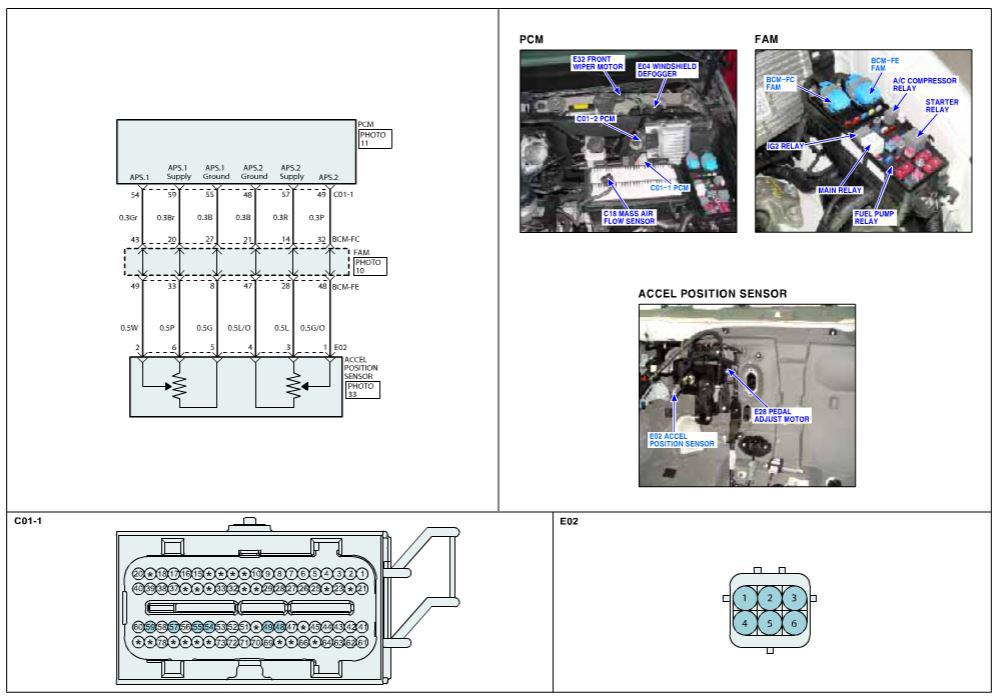

Fig 1: Accelerator Position Sensor 1 Signal Circuit High Input - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
