Circuit Diagram

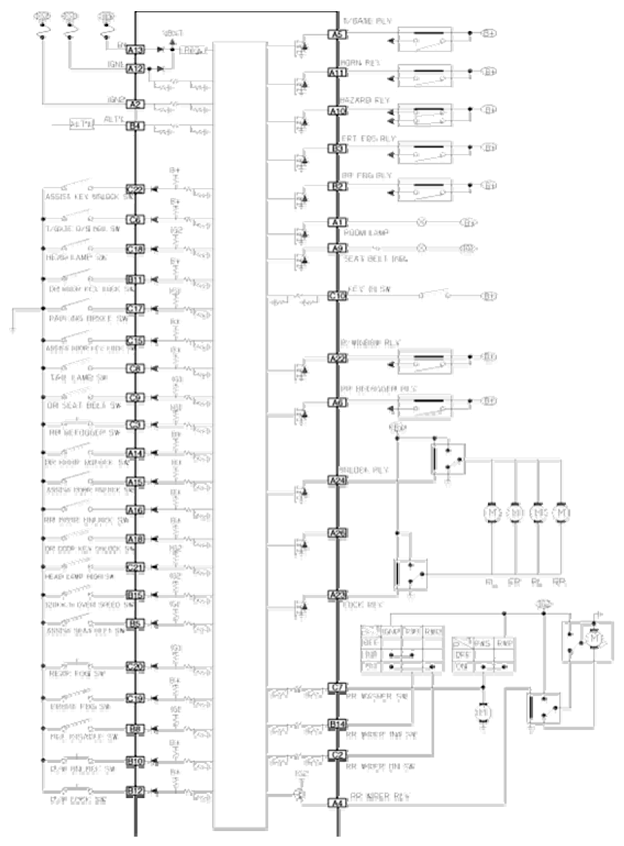

Fig 1: Body Control Module (BCM) - Circuit Diagram (1 Of 2)
G06525382Courtesy of KIA MOTORS AMERICA, INC.

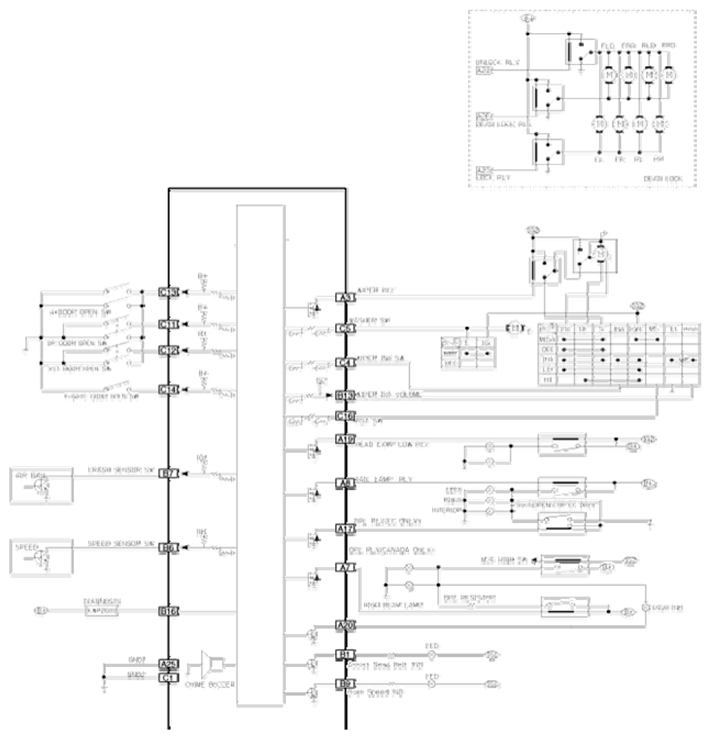

Fig 2: Body Control Module (BCM) - Circuit Diagram (2 Of 2)
G06525383Courtesy of KIA MOTORS AMERICA, INC.
