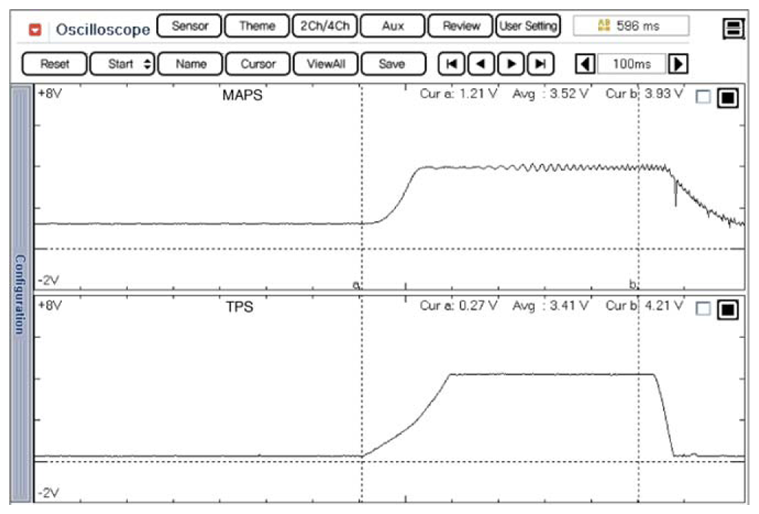

Fig 1: Scantool Display - Signal Waveform Of MAPS & TPS
Courtesy of KIA MOTORS AMERICA, INC.
Check whether the TPS signals increase at the same time when accelerating. During acceleration, the TPS output voltage increases; during deceleration, the TPS output voltage decreases.
