Connecting Rod, Engine

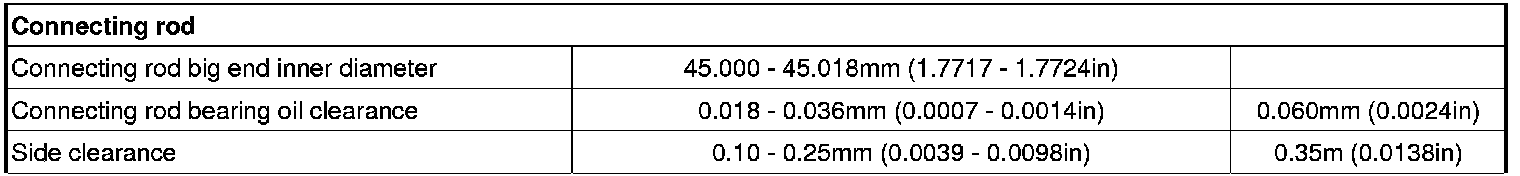

Connecting Rod







End play
Standard 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Maximum 0.35 mm (0.0138 in)

Connecting Rod Cap Nut

Tightening torque 17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft) + 88 - 92°
