Components Location: Notes

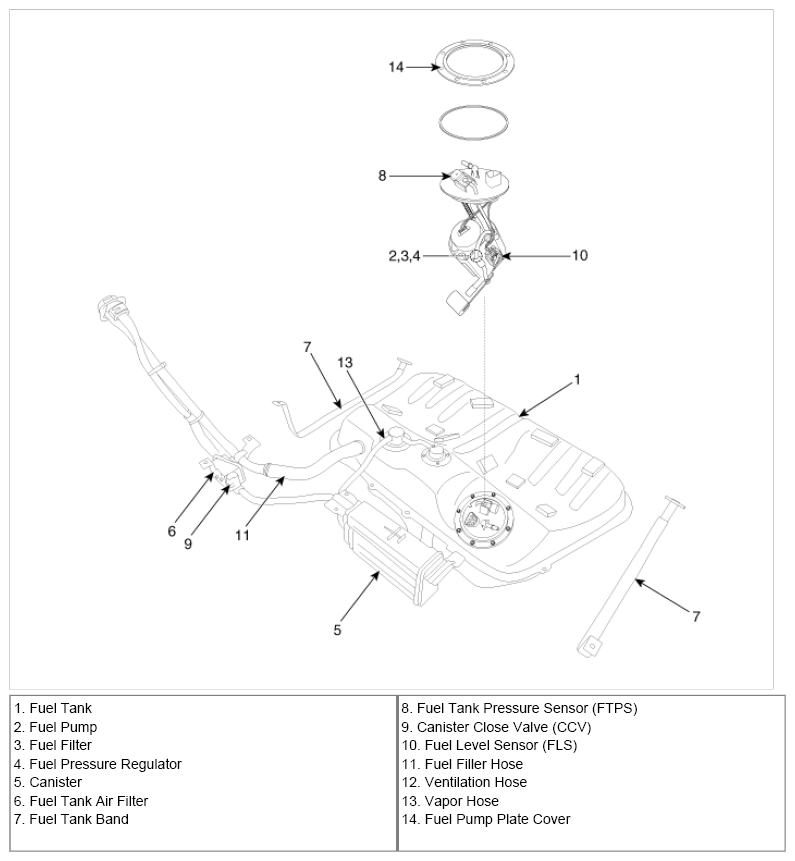

Fig 1: Identifying Fuel Delivery System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
