High Voltage Battery Control System





BMS ECU Terminal And Input/Output Signal

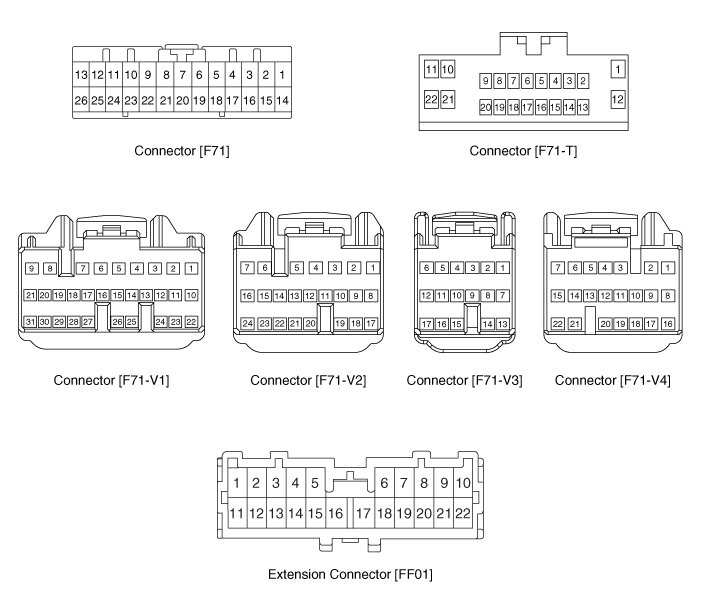

Terminal Function

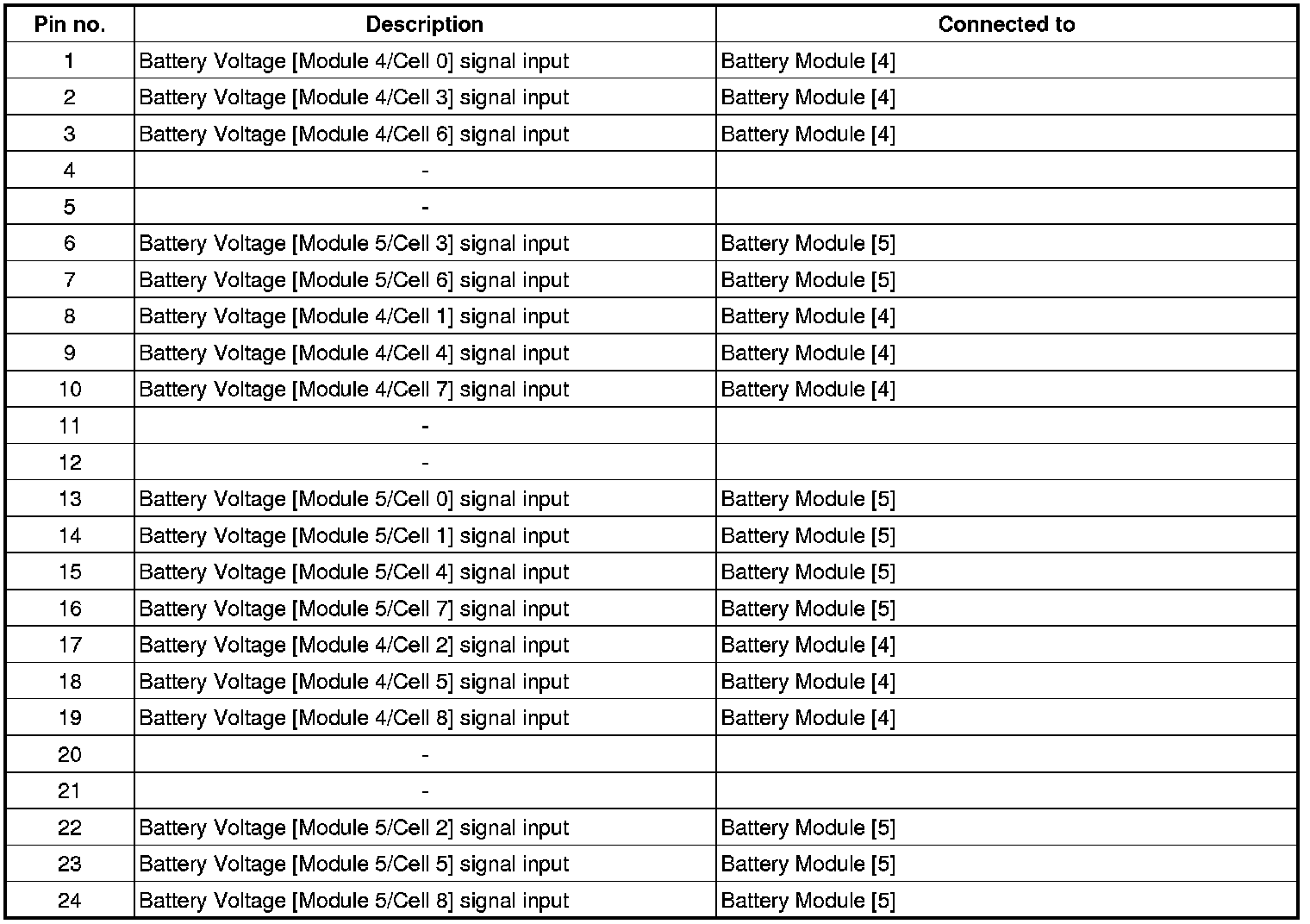

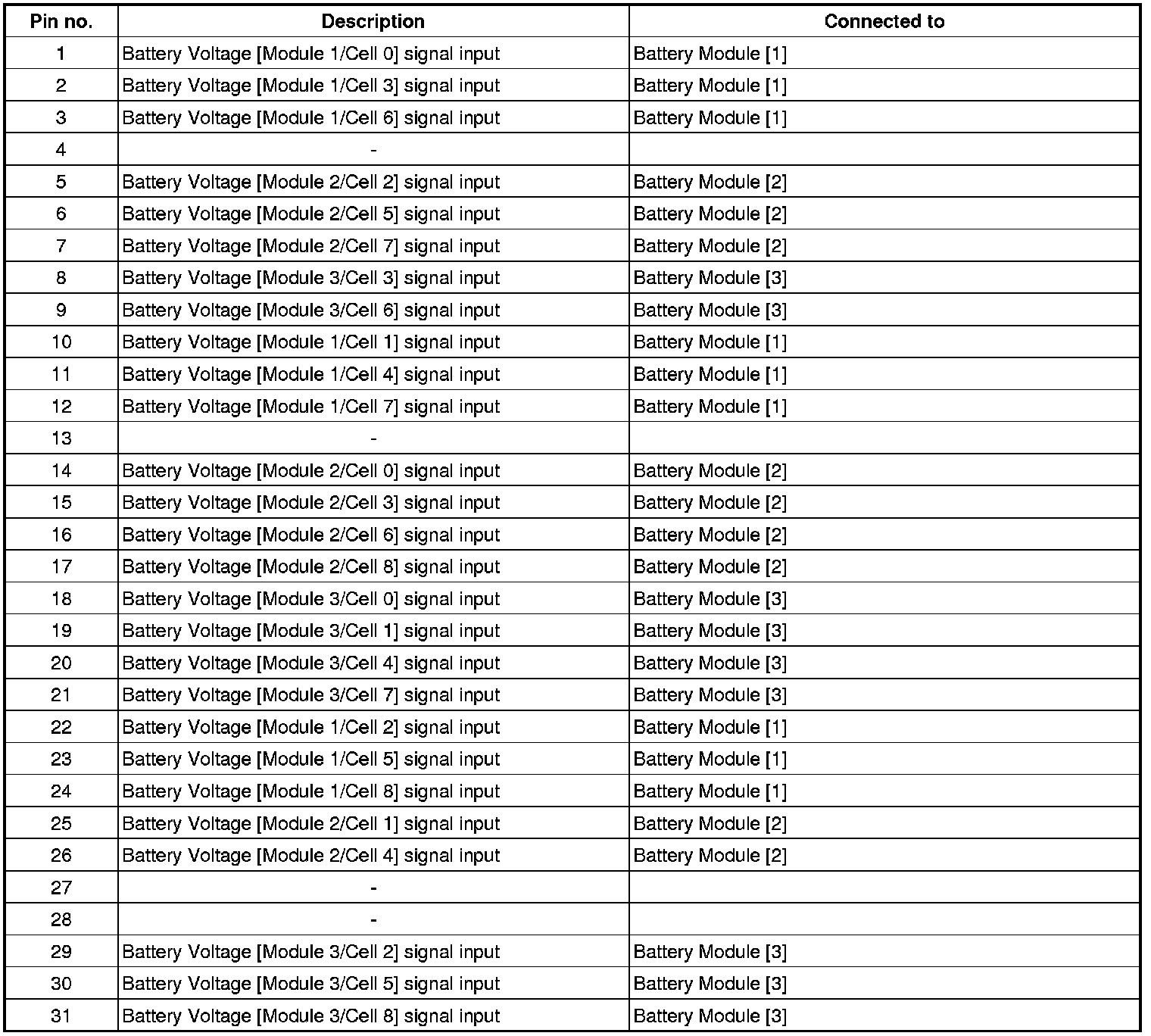

Connector [F71-V1]





Connector [F71-V2]

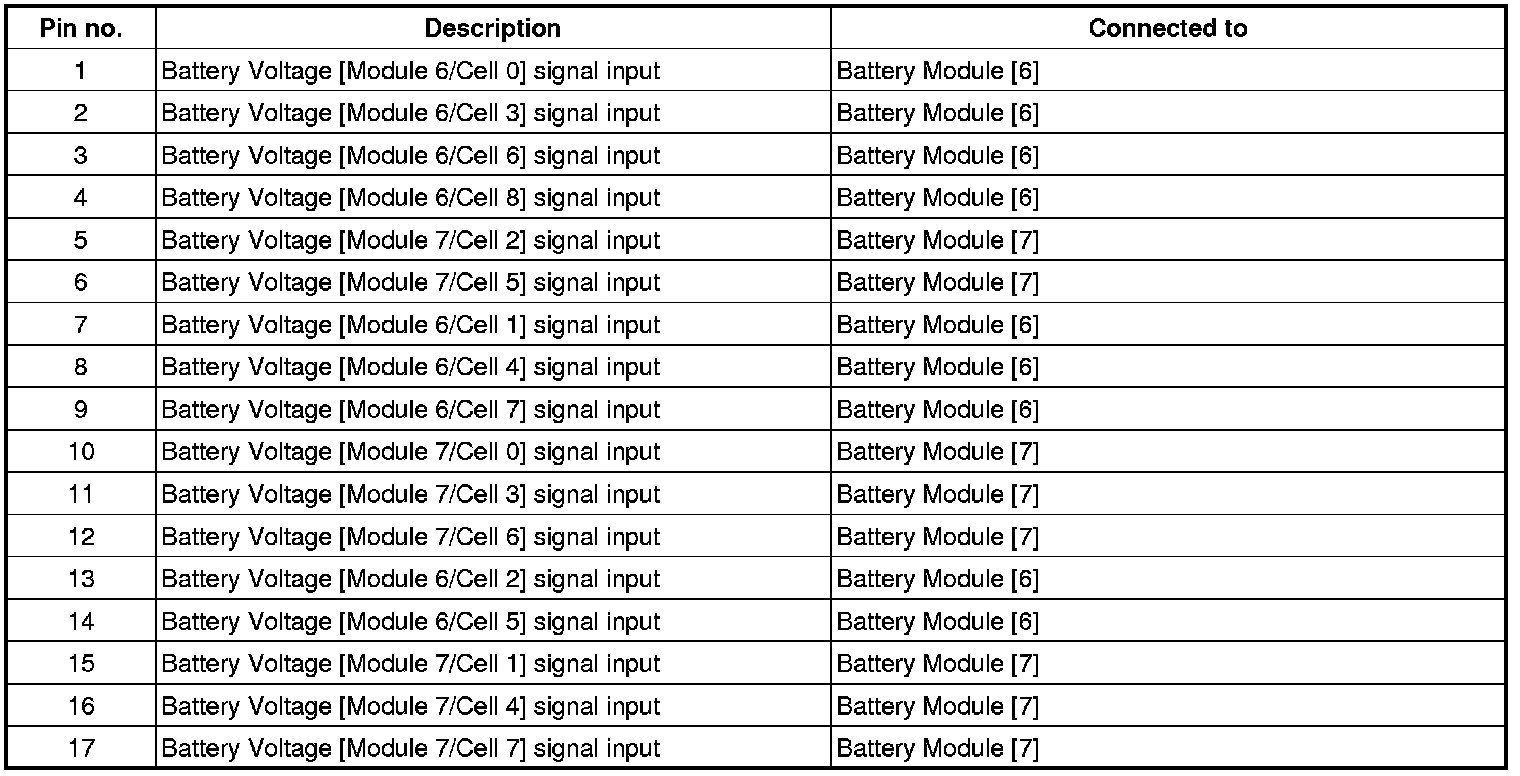

Connector [F71-V3]





Connector [F71-V4]

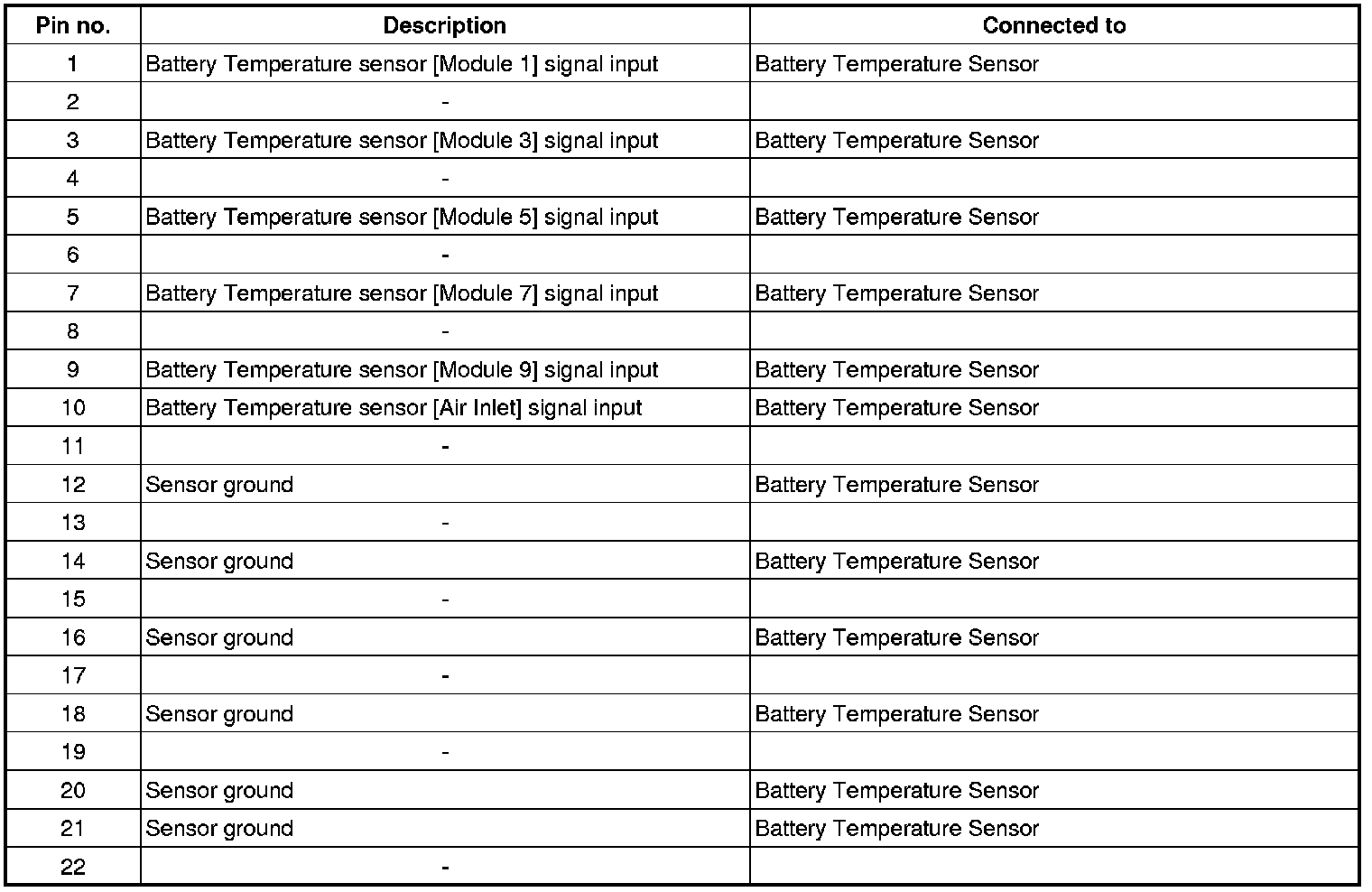

Connector [F71-T]

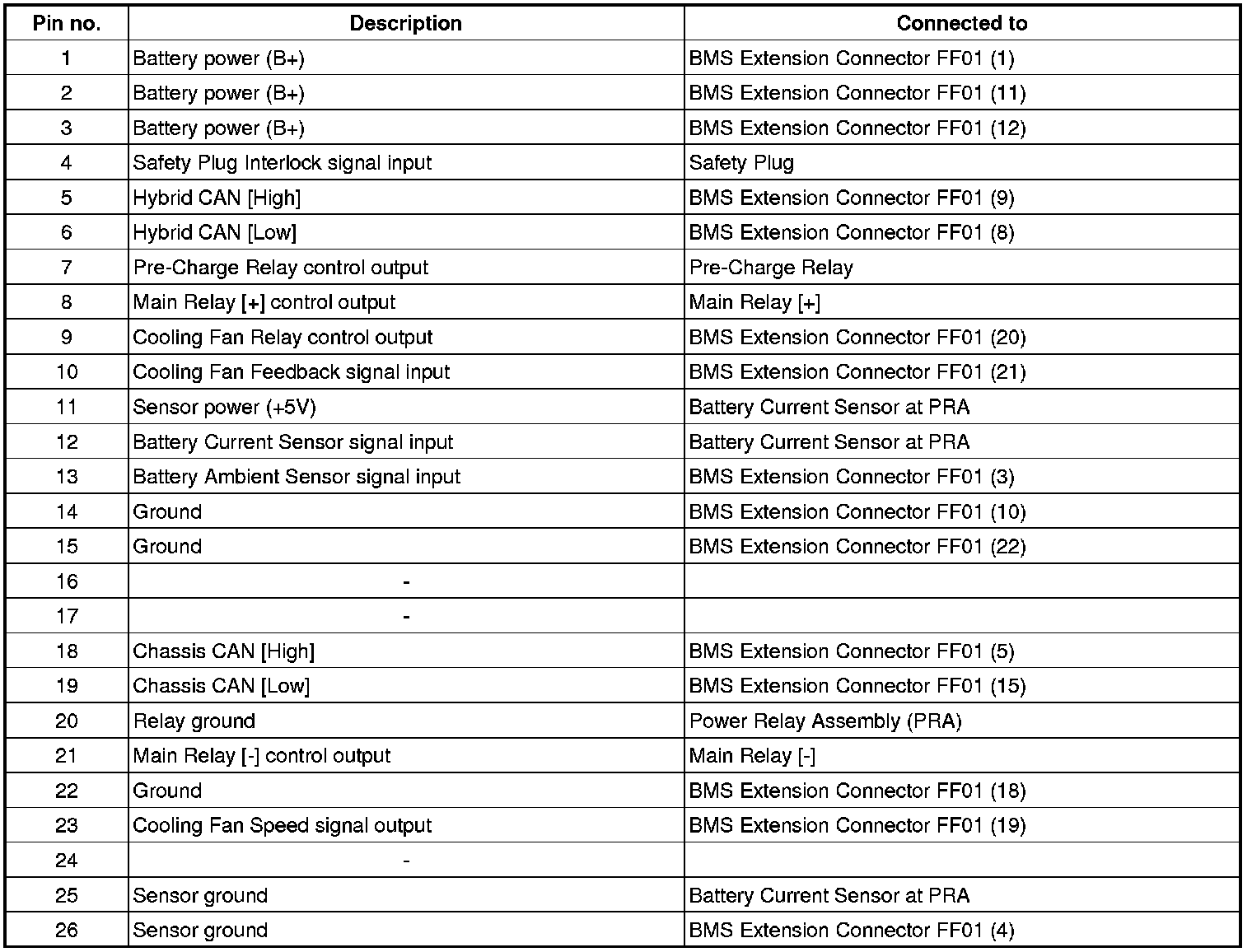

Connector [F71]

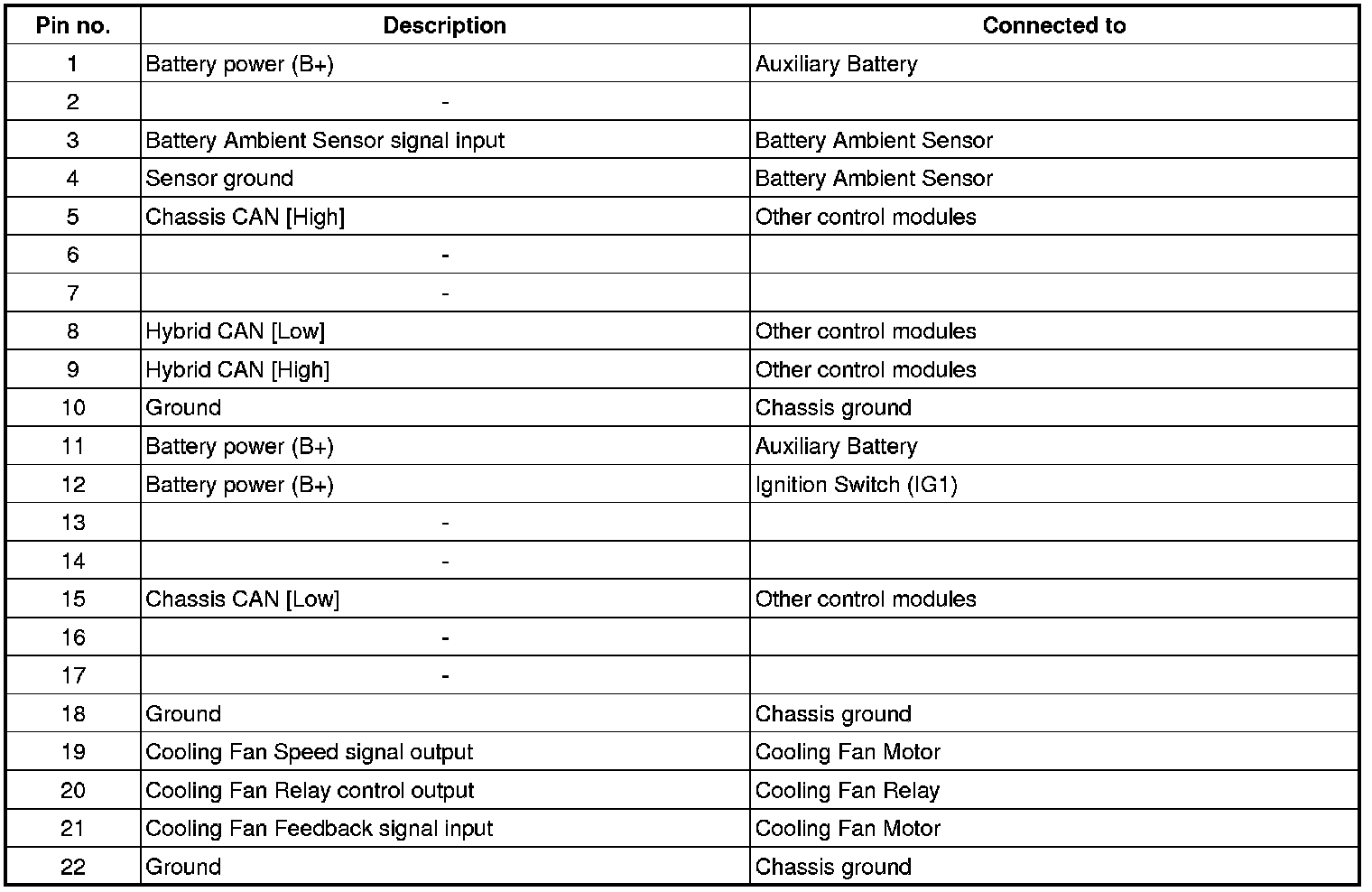

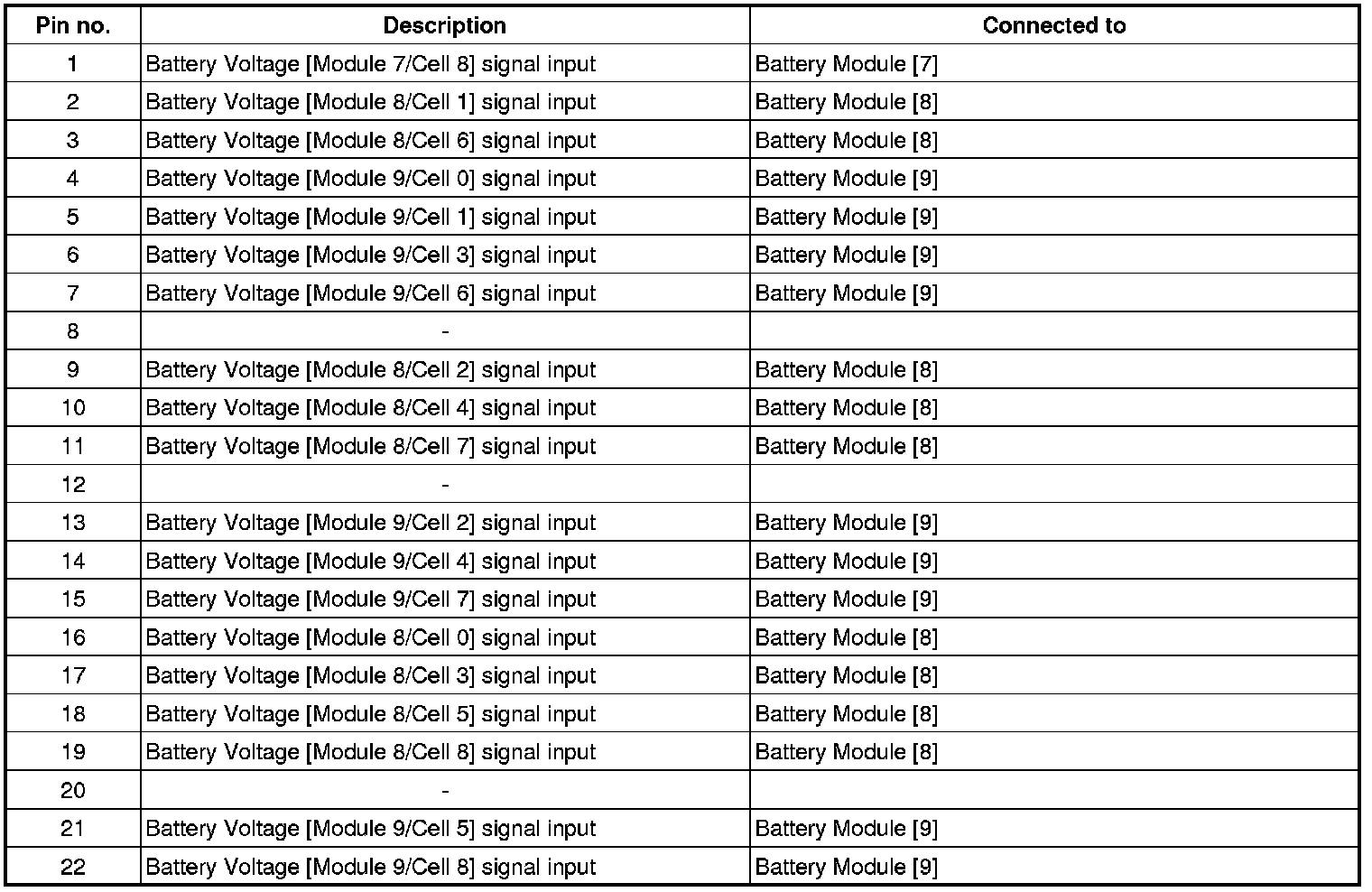

BMS Extension Connector [FF01]

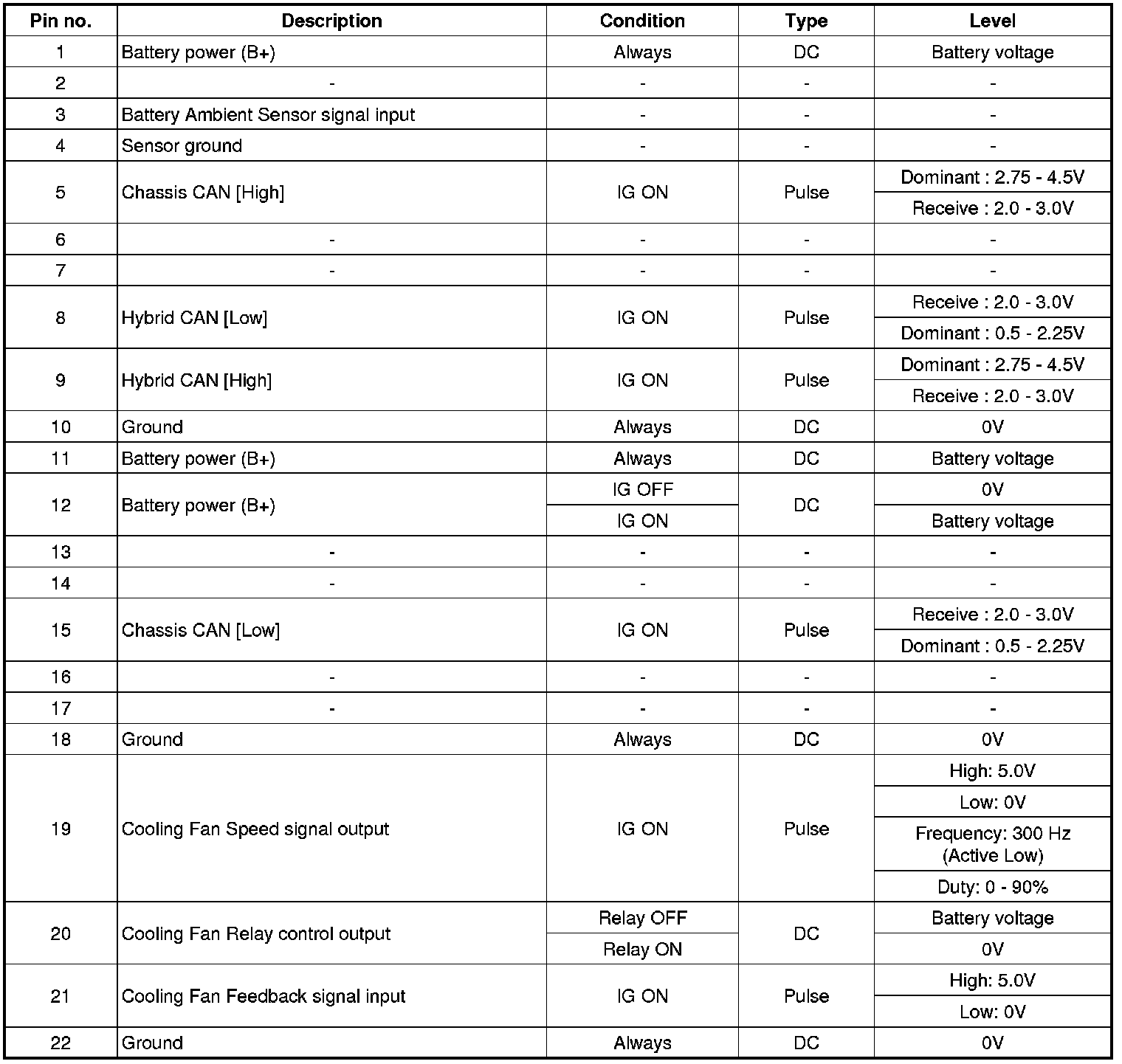

Input/Output Signal
BMS Extension Connector [FF01]

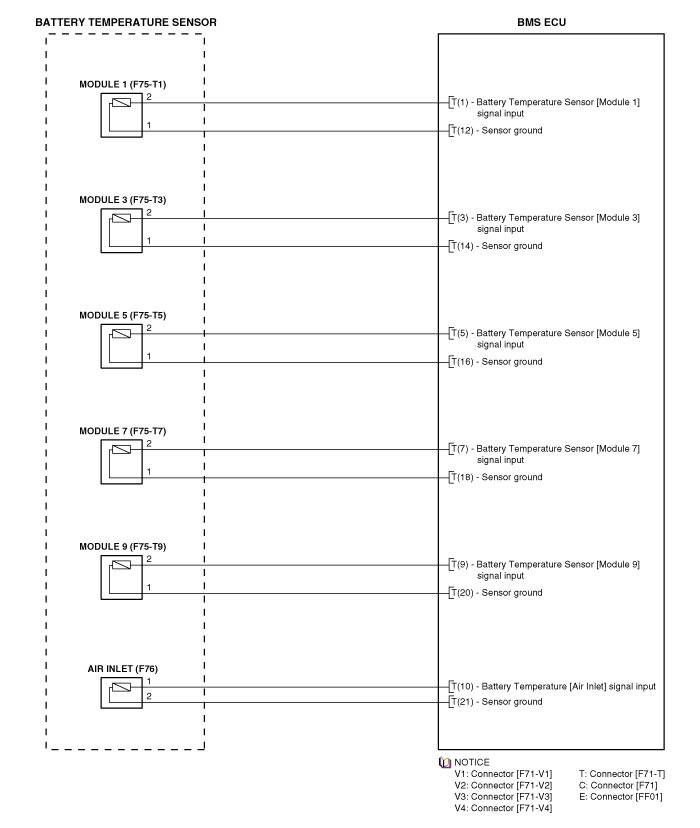

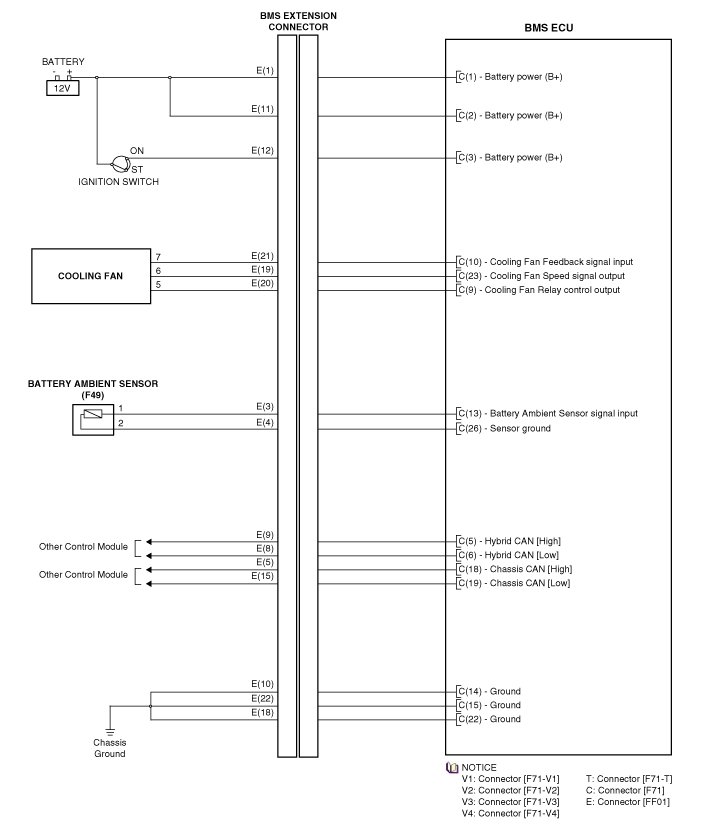

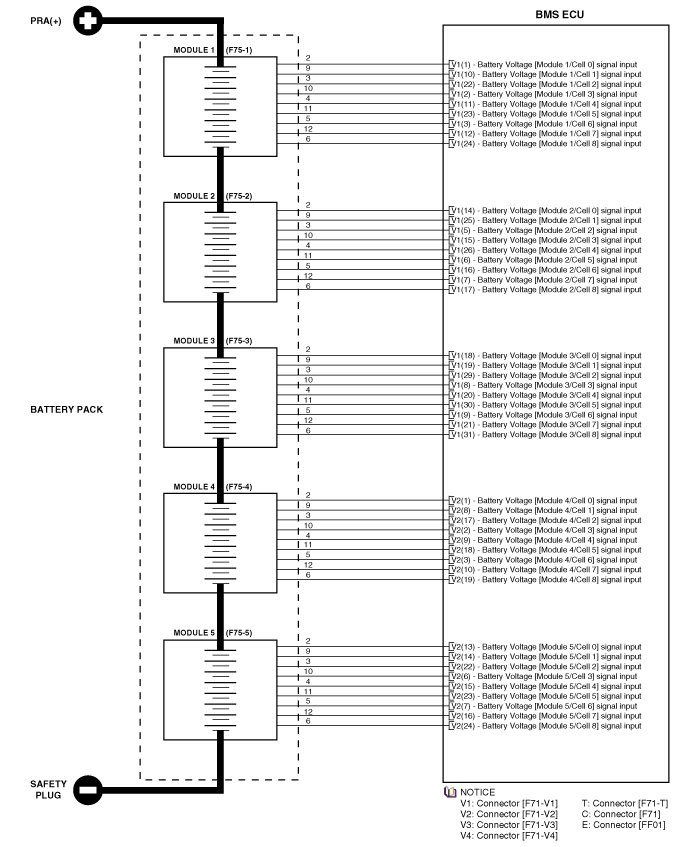

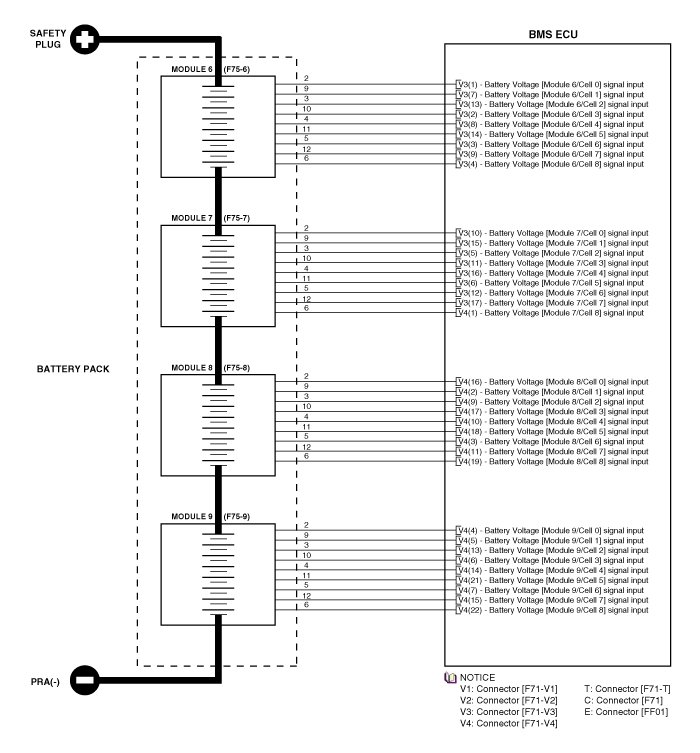

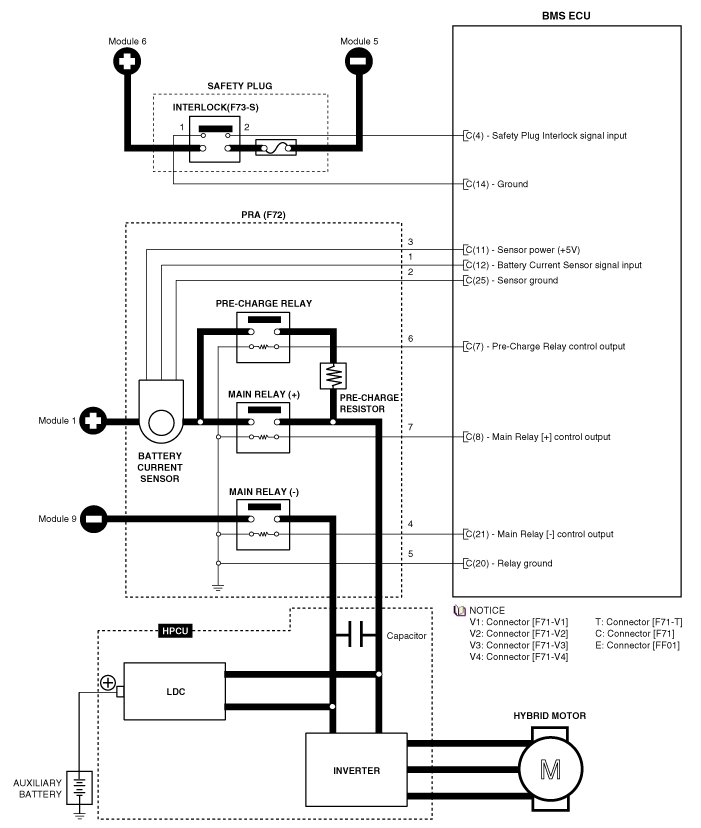

Circuit Diagram
