Signal Waveform & Data

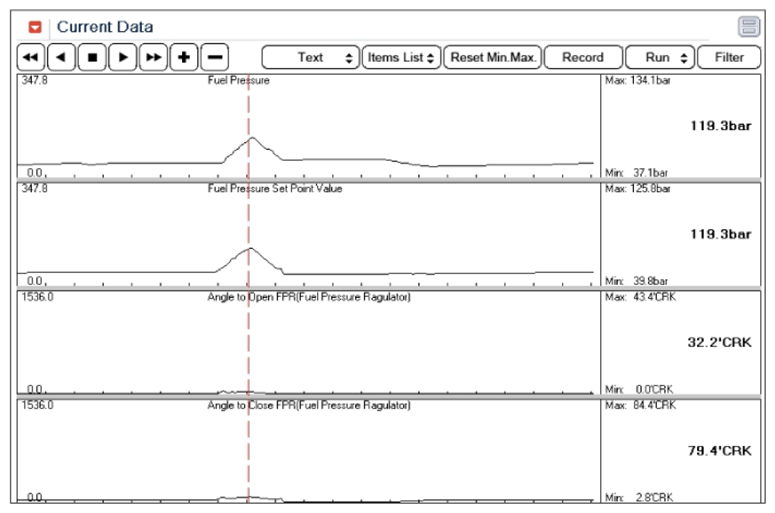

Fig 1: Signal Waveform Of Fuel Pressure Regulator Valve (FPR) Control Valve
Courtesy of KIA MOTORS AMERICA, INC.
Fuel Pressure Regulator Valve (FPR) control value during increase and decrease of RPM.

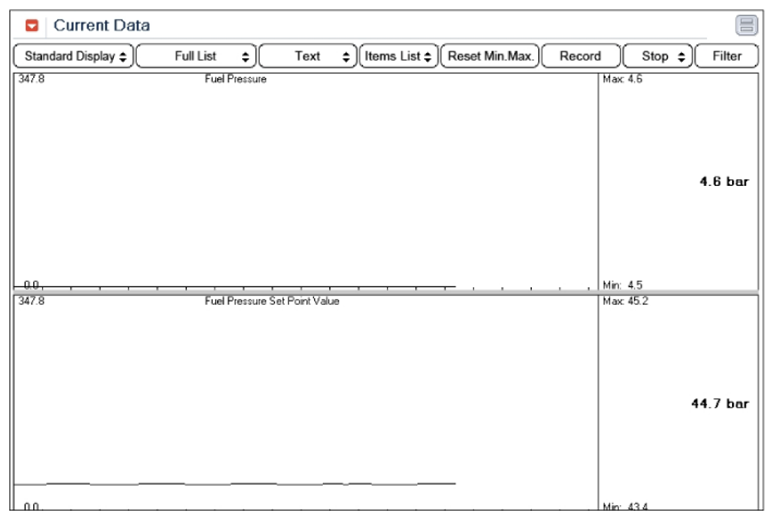

Fig 2: Fuel Pressure Set Point & Fuel Pressure Values
Courtesy of KIA MOTORS AMERICA, INC.
Fuel Pressure Set Point and Fuel Pressure Values when the Circuit Opens
