Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 3) - 2.4L
>>
DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input
>>
General Information
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

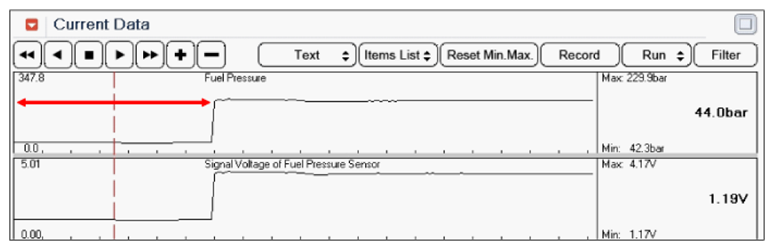

Fig 1: Signal Waveform Of Fuel Pressure Sensor (Normal Idle State)
Courtesy of KIA MOTORS AMERICA, INC.
Normal idle state.

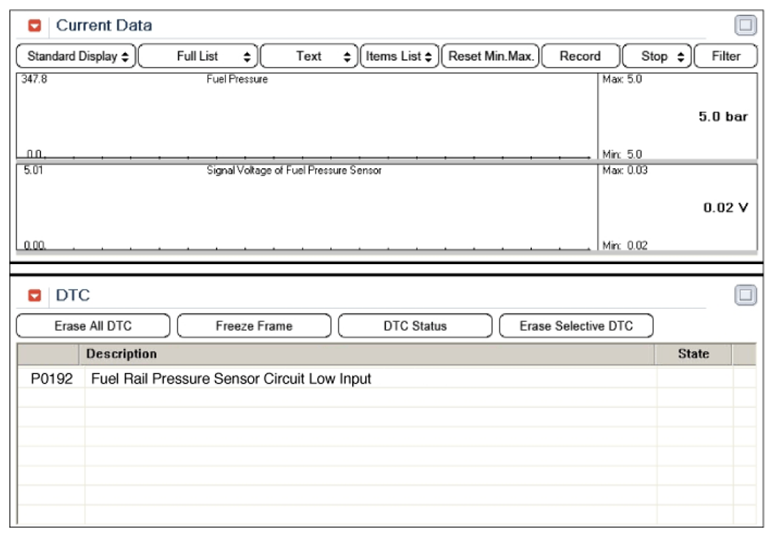

Fig 2: Signal Circuit Of Fuel Pressure Sensor Short To Ground
Courtesy of KIA MOTORS AMERICA, INC.
Sample: P0192 setting when the Signal Circuit of Fuel Pressure Sensor shorts to ground.
