Engine Control System Diagnosis (2 Of 3) - 2.4L
>>
DTC P0462: Fuel Level Sensor 'A' Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

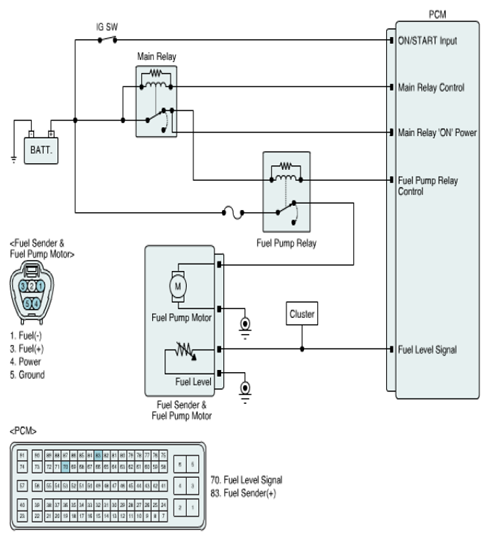

Fig 1: Diagnostic Circuit Diagram Of Fuel Level Sensor & Fuel Pump Motor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
