Signal Circuit Inspection

■ Check signal circuit voltage

1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. IG key ON.
4. Measure voltage between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.

   Specification :  4.8V~5.1V

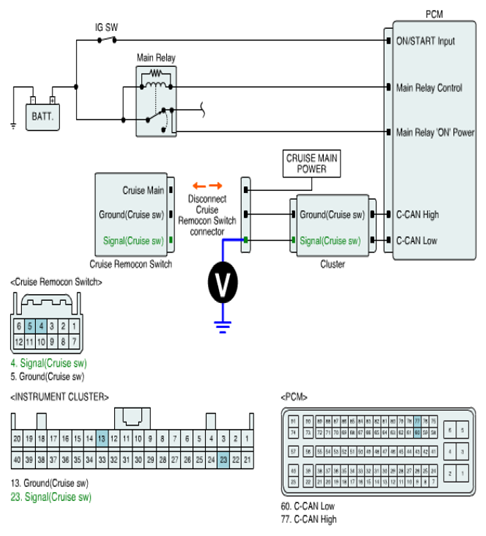

   Fig 1: Measuring Voltage Between 'Signal (Cruise Sw)' Terminal Of 'Cruise Remocon Switch' Harness Connector & Chassis Ground

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured value within specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Go to Check Short In Signal Circuit .
