Signal Waveform & Data

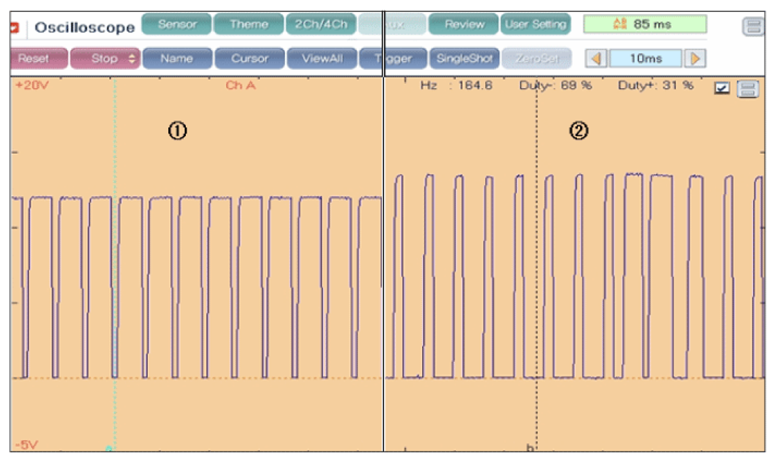

Fig 1: Signal Waveforms Of Alternator (1 Of 2)
G07386746Courtesy of KIA MOTORS AMERICA, INC.

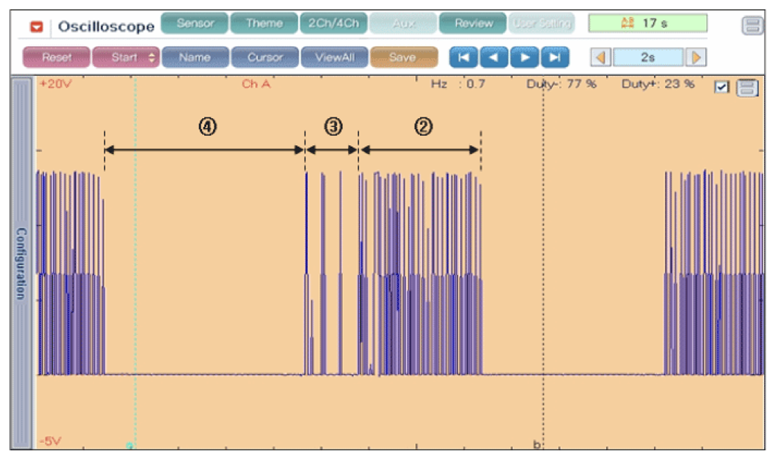

Fig 2: Signal Waveforms Of Alternator (2 Of 2)
G07386747Courtesy of KIA MOTORS AMERICA, INC.
  1. Normal waveform with IG ON.
  2. Normal waveform with Idle and no electrical load.
  3. Normal waveform with Idle and part electrical load.
  4. Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc).
