Ground Circuit Inspection

■ Check for Open in Ground circuit

1. IG KEY OFF.
2. Disconnect APS harness connector and PCM harness connector.
3. Measure resistance between both ends of APS1 ground line.

   Specification :  Below 1Ω

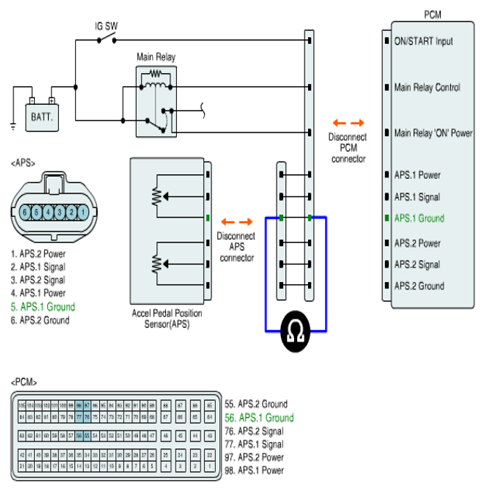

   Fig 1: Measuring Resistance Between Both Ends Of APS1 Ground Line

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is resistance within specification?

   YES

   • Go to next procedure.

   NO

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
