A/C Control Module (Auto) Connector End View (M21-A)

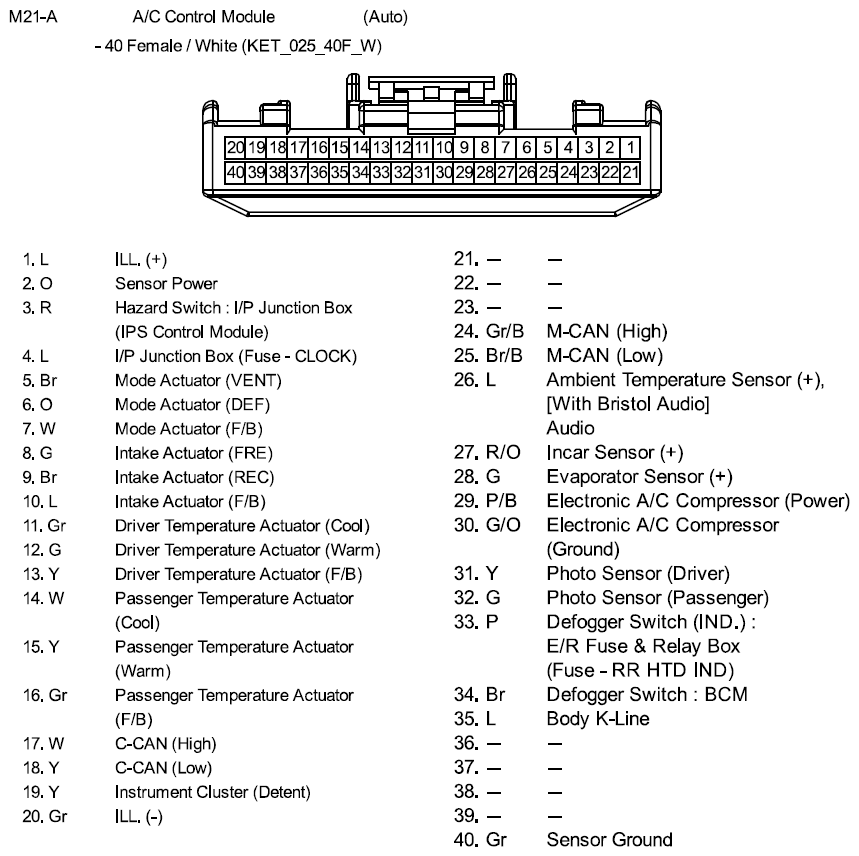

Fig 1: A/C Control Module (Auto) Connector End View (M21-A)
G10796833Courtesy of KIA MOTORS AMERICA, INC.
