Driver CCS Control Module (With CCS) Connector End View (S11)

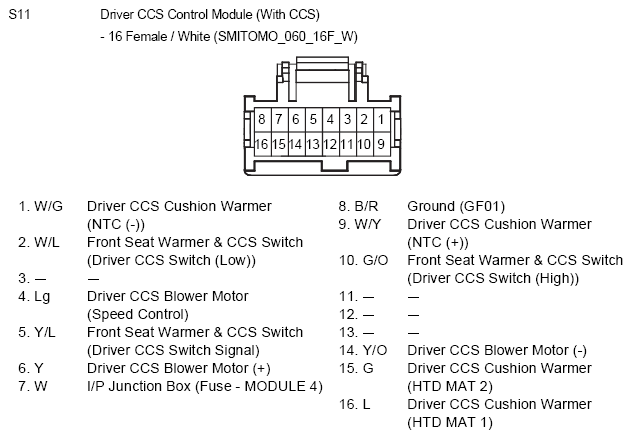

Fig 1: Driver CCS Control Module (With CCS) Connector End View (S11)
G10796898Courtesy of KIA MOTORS AMERICA, INC.
