Component Inspection

1. IG OFF.
2. Disconnect the Fuel Pressure Regulator Valve (FPR) connector.
3. Connect probes to each terminal of FPR connector.
4. Measure FPR resistance.

   Specification :  Approx. 5Ω

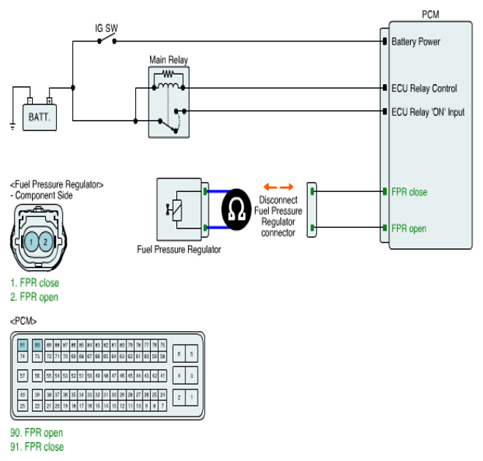

   Fig 1: Measuring FPR Resistance

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured resistance within specifications?

   YES

   • Check for poor connection between PCM and component:

   Backed out terminal, improper mating, broken locks or poor terminal to wire connection.

   Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good component and check for proper operation.

If the problem is corrected, replace the component and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
