Signal Waveform & Data

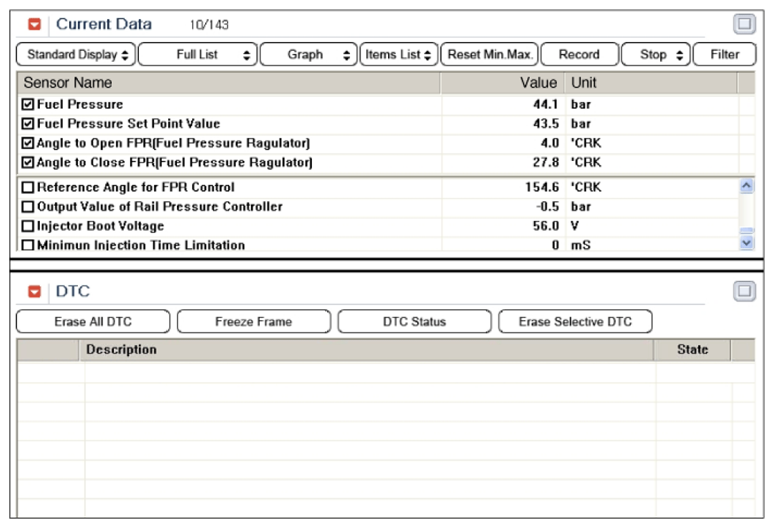

Fig 1: Scantool Data Of Fuel Pressure Regulator (Normal At Idle)
Courtesy of KIA MOTORS AMERICA, INC.
Normal idle state.

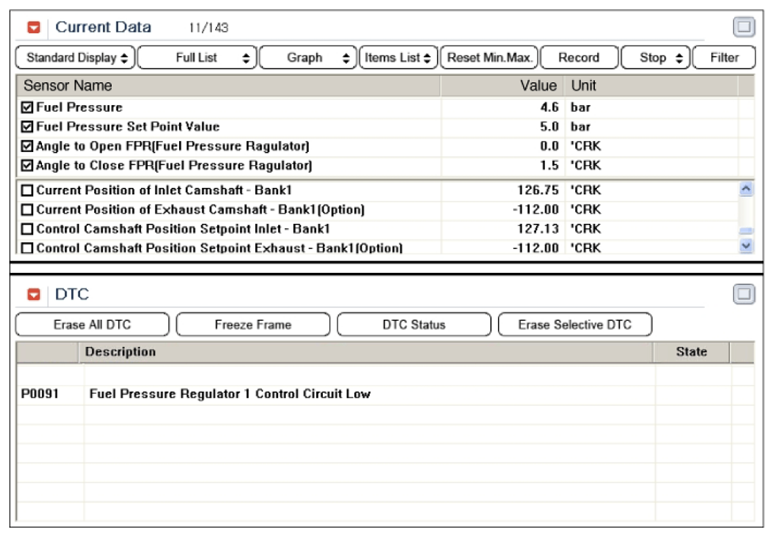

Fig 2: Scantool Data Of Fuel Pressure Regulator (Short To Ground)
Courtesy of KIA MOTORS AMERICA, INC.
When FPR circuit shorts to ground.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
