Check Short In Signal Circuit

IG key OFF.
Disconnect 'CRUISE REMOCON SWITCH' connector and Cluster connector.
Check resistance between 'Signal (Cruise sw)' terminal and 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector.
Check resistance between 'Signal (Cruise sw)' terminal and 'Ground (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector.
Specification : Infinite

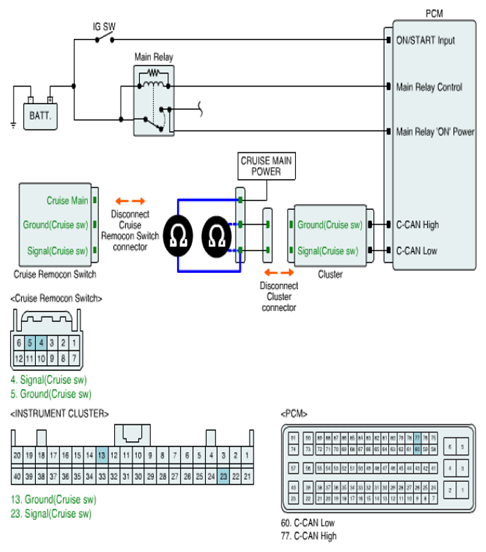

Fig 1: Checking Resistance Between 'Signal (Cruise Sw)' Terminal & 'Ground (Cruise Sw)' Terminal Of 'Cruise Remocon Switch' Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured value within specification?
YES
- Go to Check Open In Signal Circuit .
NO
- Repair short in signal circuit, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
