Engine Control System Diagnosis (3 Of 3) - 2.4L
>>
DTC P2123: Throttle Pedal Position Sensor/Switch 'D' Circuit High Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

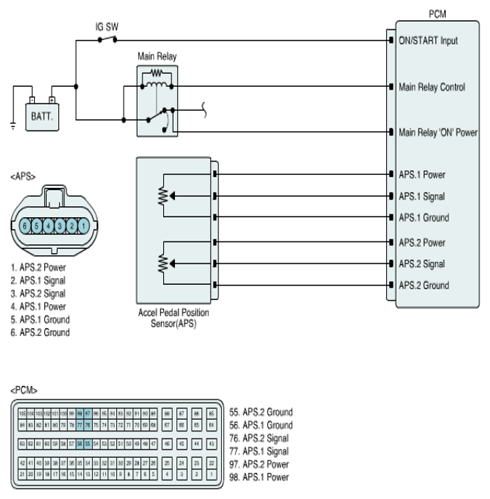

Fig 1: Diagnostic Circuit Diagram Of Accel Pedal Position Sensor
Courtesy of KIA MOTORS AMERICA, INC.
