EPS Control Module Connector End View (E12)

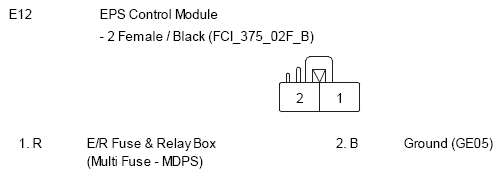

Fig 1: EPS Control Module Connector End View (E12)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
