Components and Components Location: Components

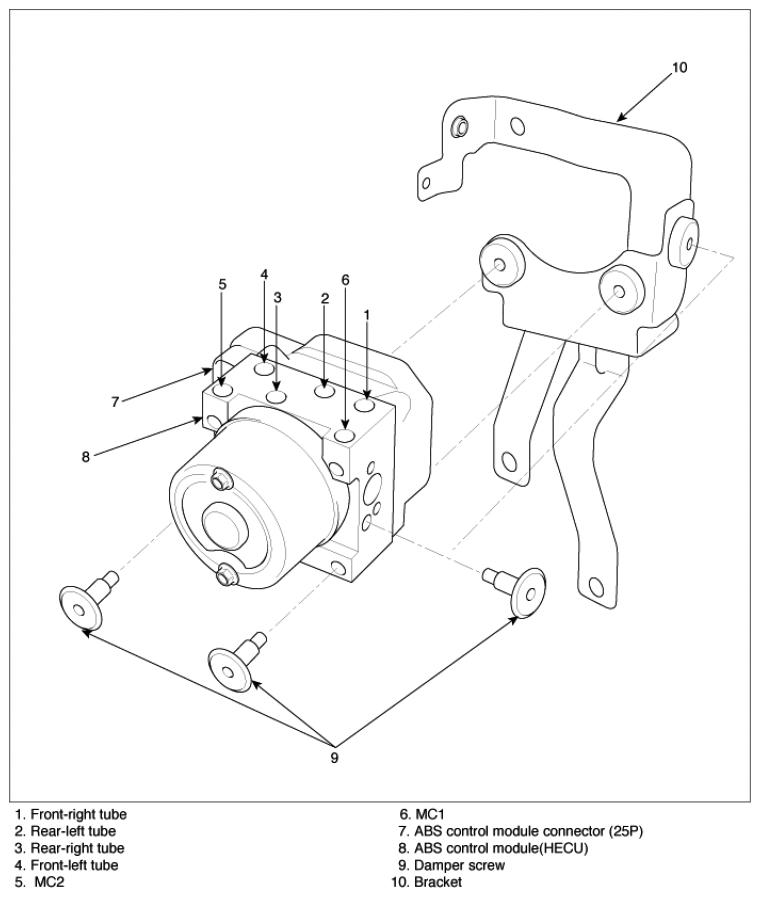

Fig 1: Identifying ABS Control Unit Components Location
G06829361Courtesy of KIA MOTORS AMERICA, INC.
