Components and Components Location: Components

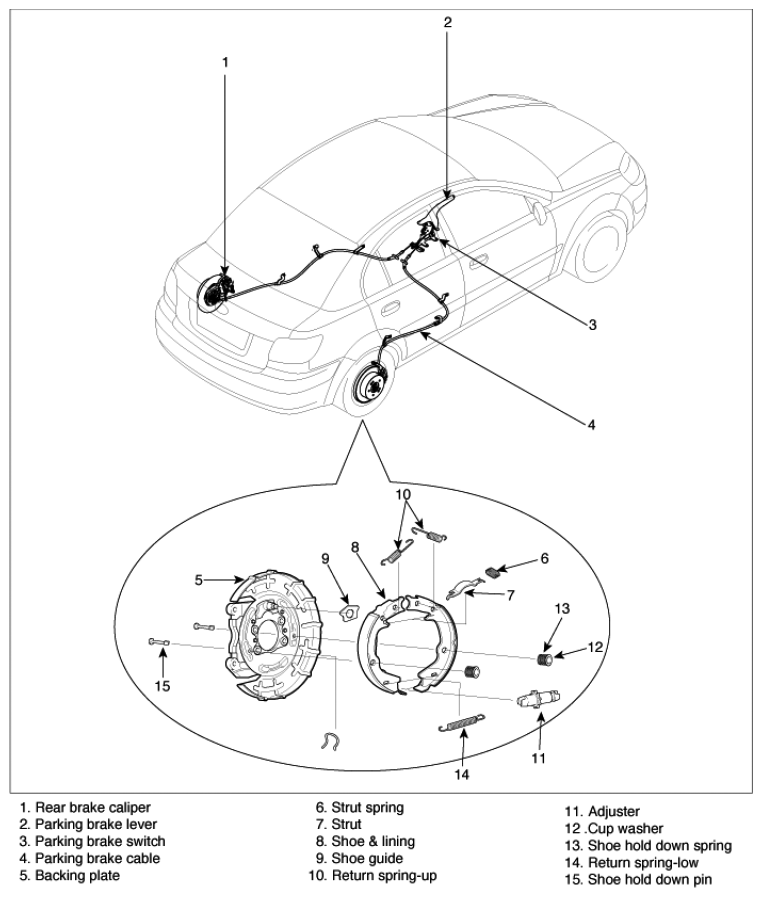

Fig 1: Identifying Parking Brake Assembly Components Location
G06832077Courtesy of KIA MOTORS AMERICA, INC.
