Components and Components Location: Component

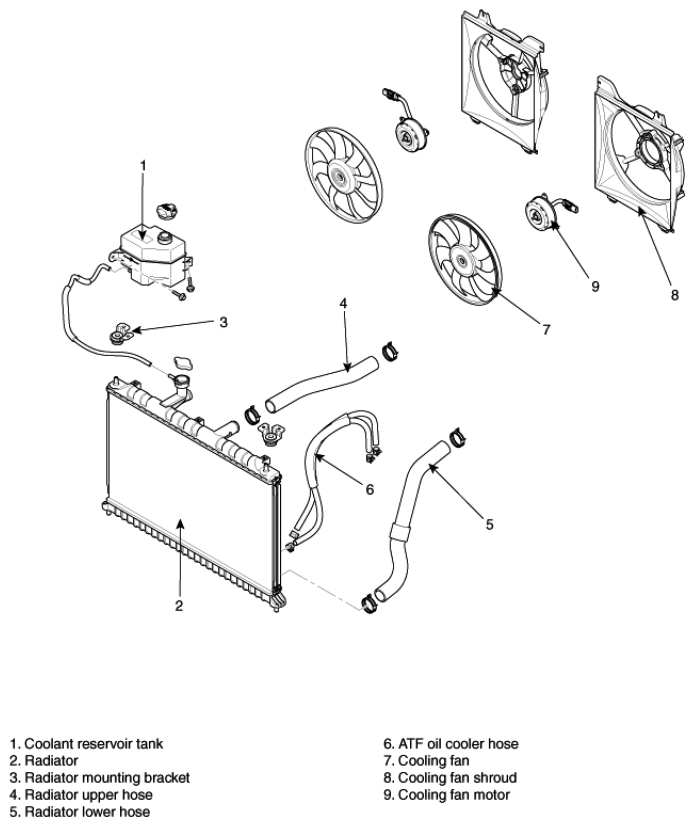

Fig 1: Identifying Cooling System Components (1 Of 2)
G06828596Courtesy of KIA MOTORS AMERICA, INC.

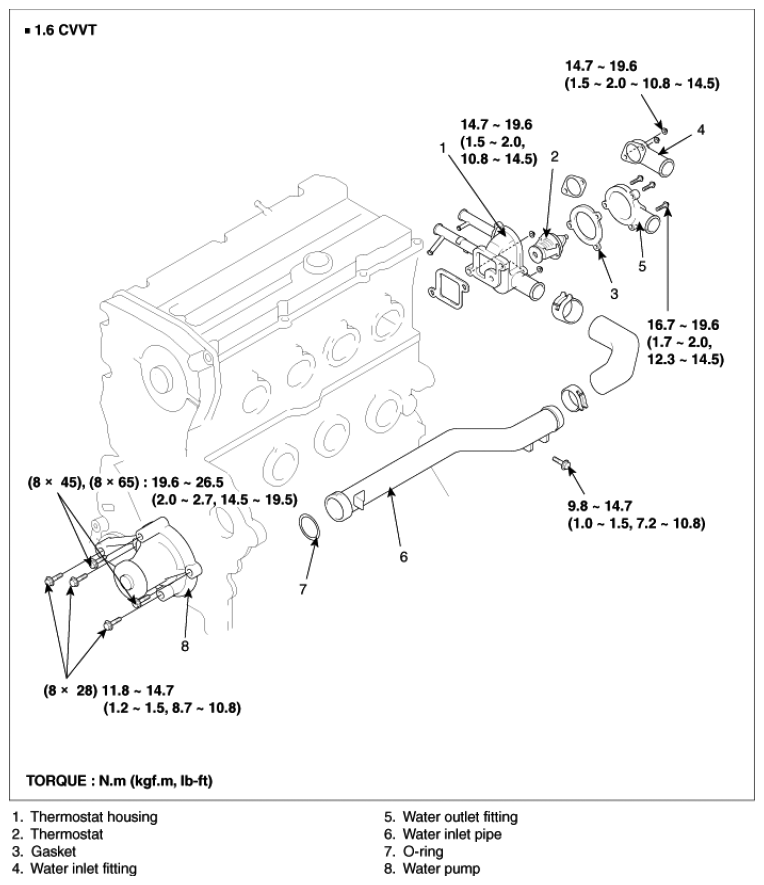

Fig 2: Identifying Cooling System Components (2 Of 2)
G06828597Courtesy of KIA MOTORS AMERICA, INC.
