Components and Components: Component

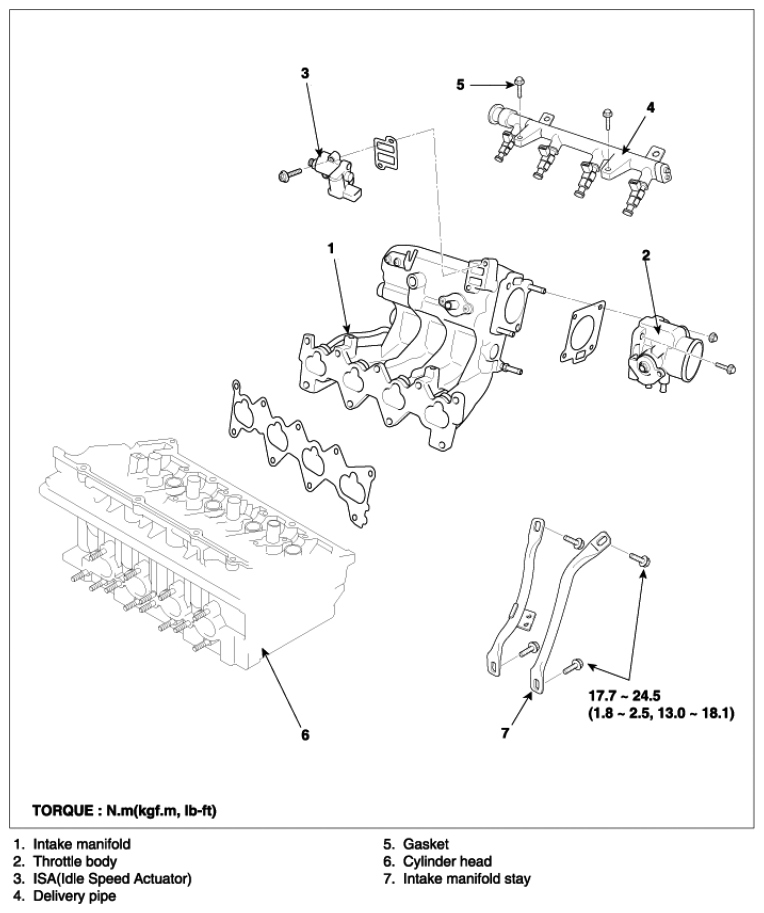

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G06831836Courtesy of KIA MOTORS AMERICA, INC.
