Timing Belt: Component

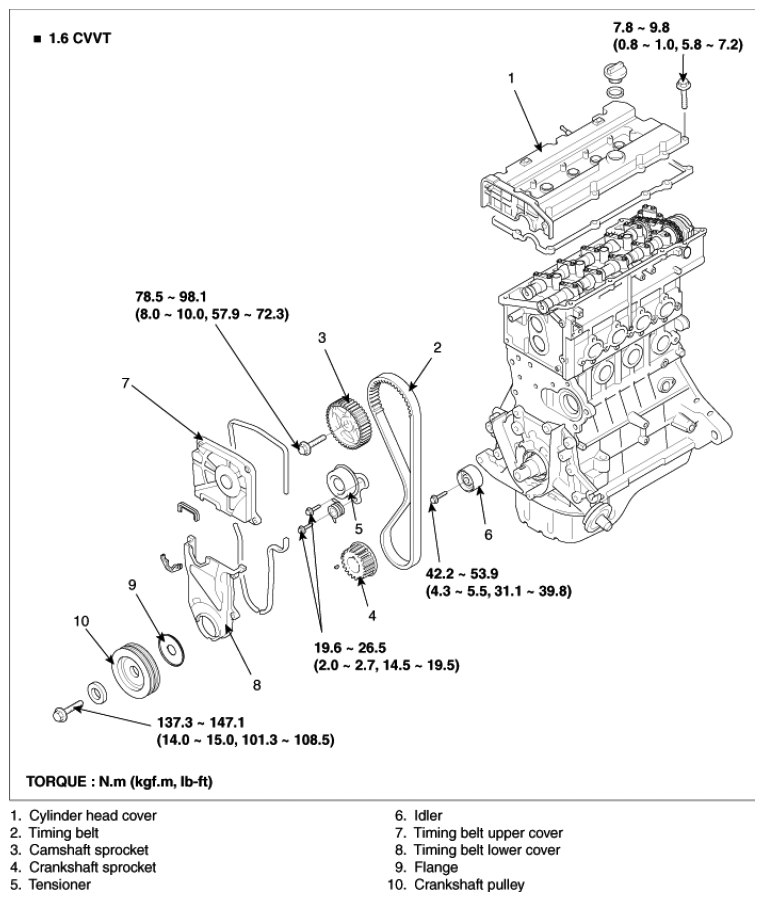

Fig 1: Identifying Timing Belt Components

G06828429

Courtesy of KIA MOTORS AMERICA, INC.
