Components and Components Location: Components

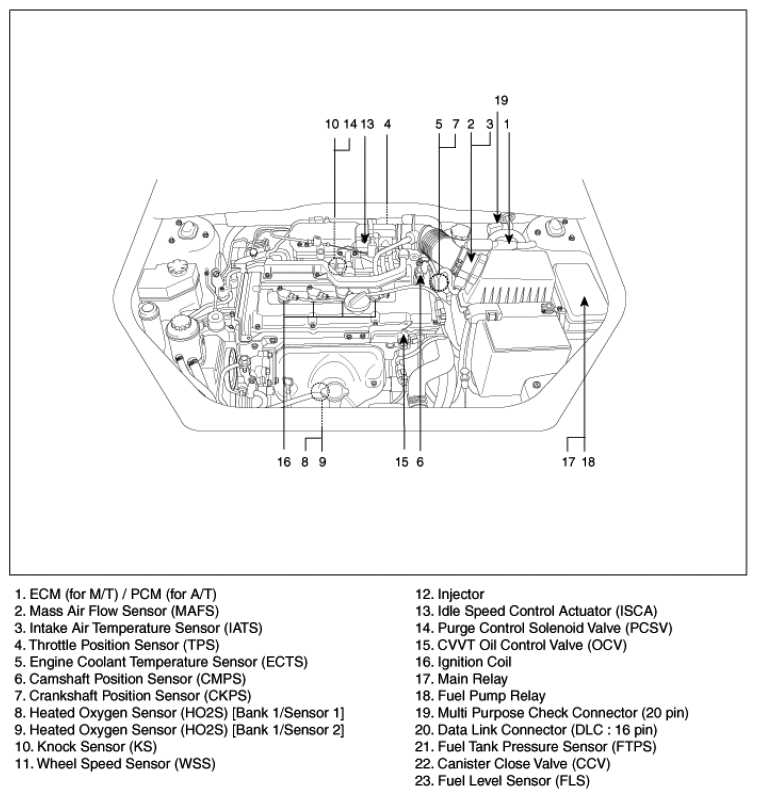

Fig 1: Identifying Engine Control System Components (1 Of 2)
G06828758Courtesy of KIA MOTORS AMERICA, INC.

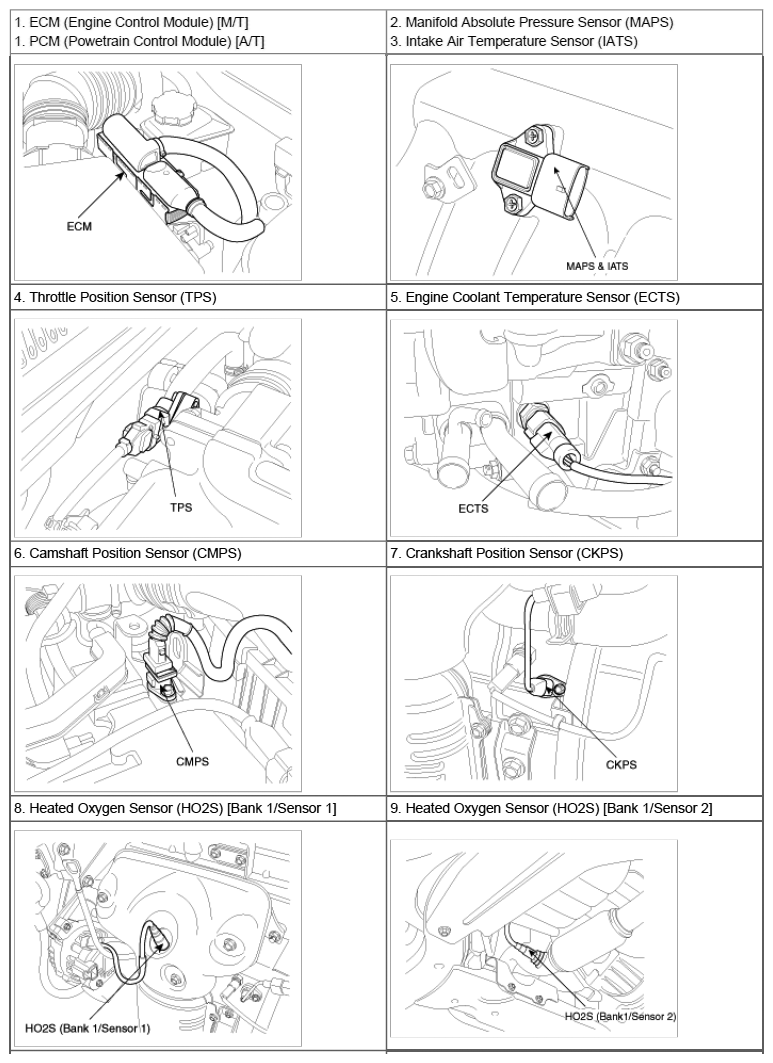

Fig 2: Identifying Engine Control System Components (2 Of 4)
G06828761Courtesy of KIA MOTORS AMERICA, INC.

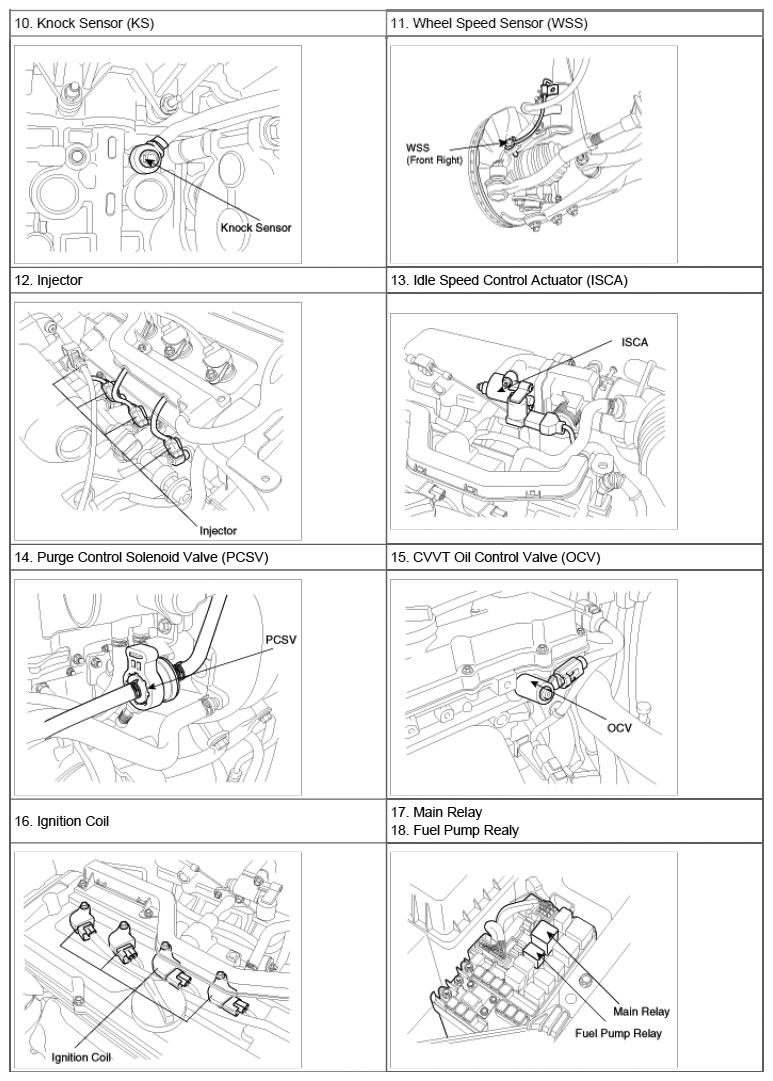

Fig 3: Identifying Engine Control System Components (3 Of 4)
G06828762Courtesy of KIA MOTORS AMERICA, INC.

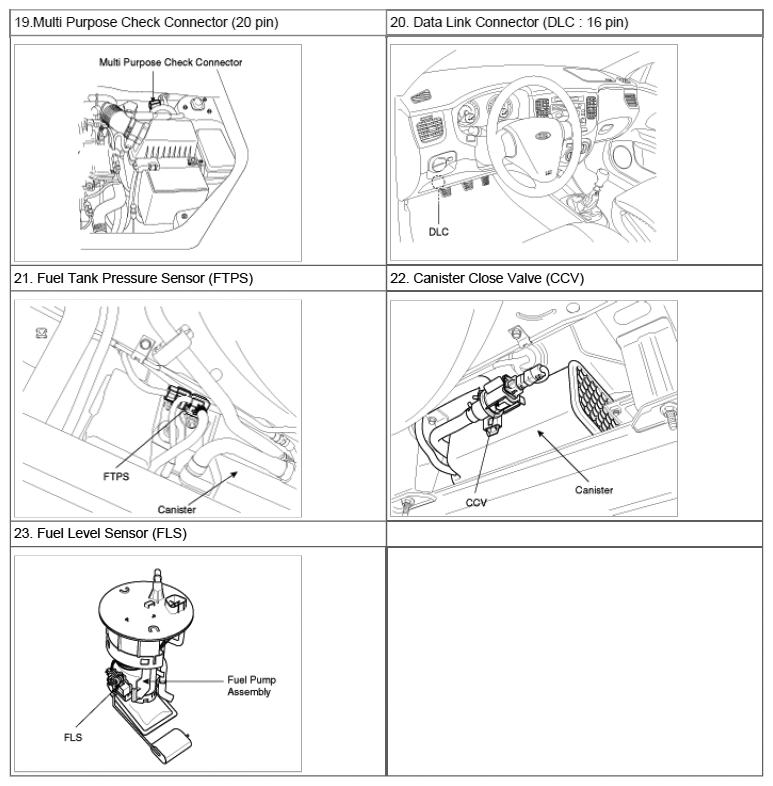

Fig 4: Identifying Engine Control System Components (4 Of 4)
G06828763Courtesy of KIA MOTORS AMERICA, INC.
