Engine Control System Diagnosis (1 Of 2)
>>
DTC P0130: O2 Sensor Circuit (Sensor1)
>>
General Information
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

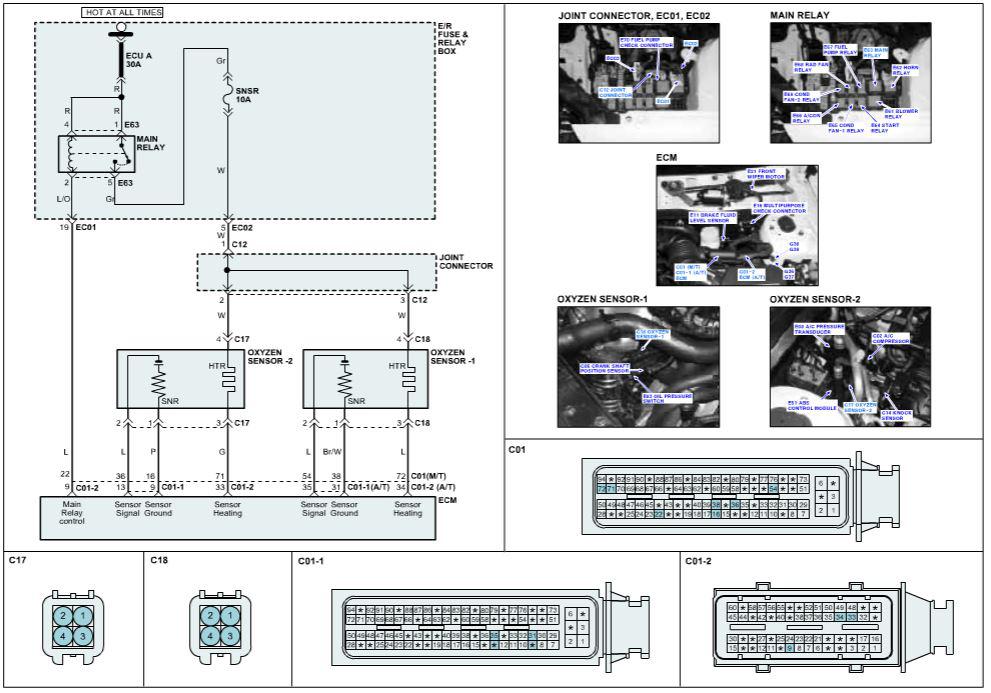

Fig 1: Heated Oxygen Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
