Electronic Control System
WARNING: This page is about a different variant/trim than selected.
SENSOR AND ACTUATOR FUNCTION

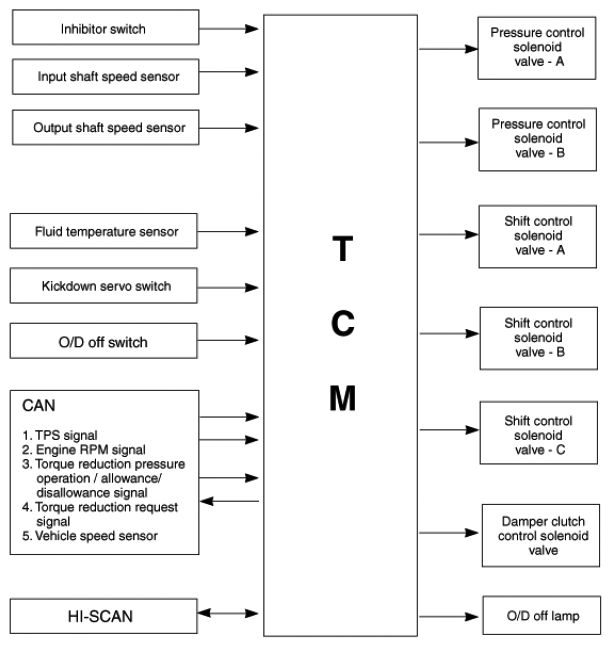

SENSOR AND ACTUATOR FUNCTION CHART
| Item | Functions |
|---|---|
| Input shaft speed sensor | Detect the turbine RPM at the E/C retainer |
| Output shaft speed sensor | Detect the T/F drive gear RPM at the transfer drive gear |
| Engine RPM signal | Receive the engine RPM via communication with ECU |
| Vehicle speed sensor | Detect the vehicle speed at the speedometer gear |
| Kickdown servo switch | Detect the operation starting of kickdown brake |
| Inhibitor switch | Detect the position of select lever through the contact switch |
| Overdrive switch | Detect the position of overdrive (4th gear) |
| TPS | Detect the throttle open angle through the potentiometer |
| Fluid temperature sensor | Detect the temperature of ATF through the thermistor |
| Torque reduction request signal | Transmit the torque reduction request signal to the engine ECU |
| Torque reduction operation/allowance/disallowance signal | Receive the signal of engine reduction pressure operation/allowance/disallowance from the ECU |
| Pressure control solenoid valve-A | Control the hydraulic pressure to the pressure control valve for shift control |
| Pressure control solenoid valve-B control | Control the hydraulic pressure to the pressure control valve for shift control |
| Shifting control solenoid valve-A | Make the hydraulic passage for shift control |
| Shifting control solenoid valve-B | Make the hydraulic passage for shift control |
| Shifting control solenoid valve-C | Make the hydraulic passage for shift control |
| Damper clutch control solenoid valve | Control the hydraulic pressure for the damper clutch control |
| * E/C : End Clutch T/F : Transfer |
|
