DTC P0223: Throttle Position Sensor 2 Signal Circuit High Input
>>
General Information
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

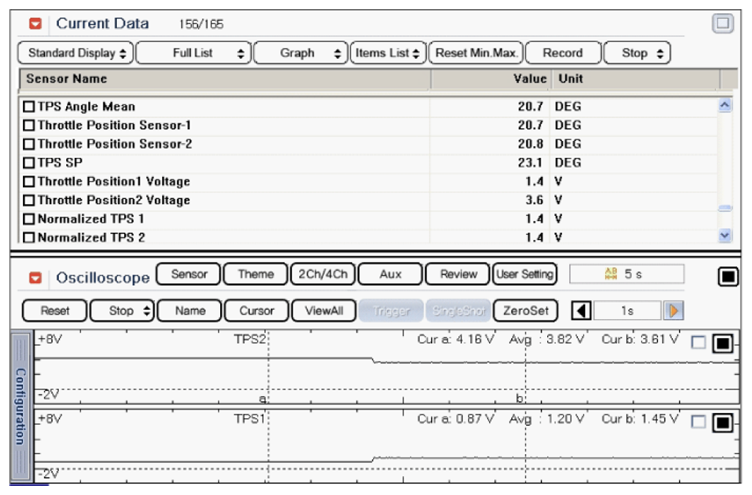

Fig 1: Scantool Display - Normal Data Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
Courtesy of KIA MOTORS AMERICA, INC.

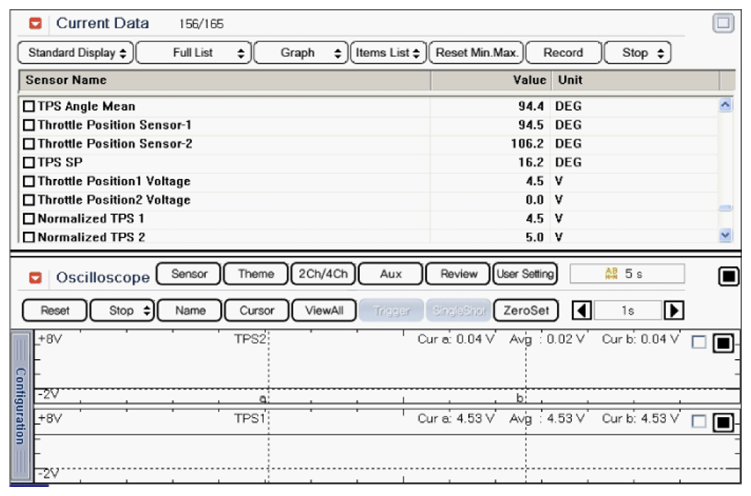

Fig 2: Scantool Display - Normal Data Of TPS1 & TPS2 With Accel Pedal Depressed Under IG ON Condition
Courtesy of KIA MOTORS AMERICA, INC.

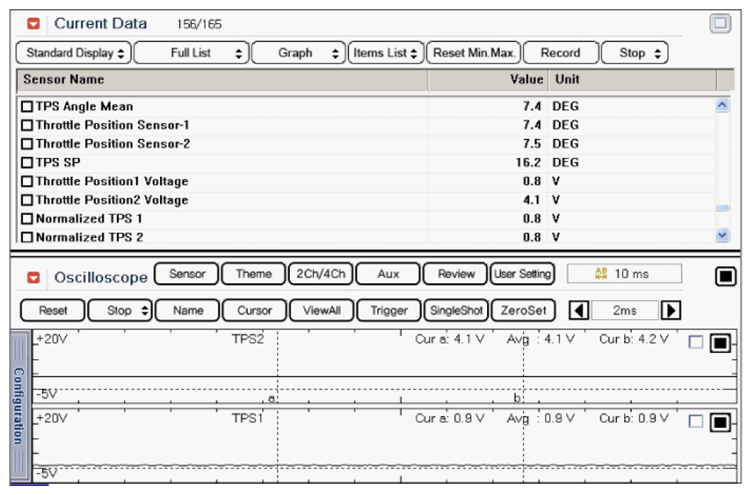

Fig 3: Scantool Display - Normal Data Of TPS1 & TPS2 Under Open Condition
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
