Repair Procedures





Removal

1. Disconnect the negative (-) battery terminal.

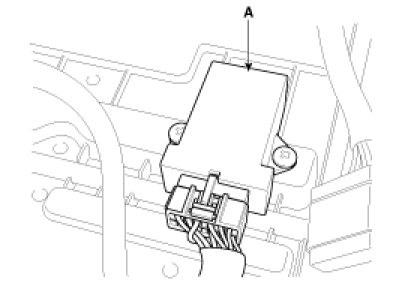

2. Remove the air ventilation seat control unit (A) after loosening screws.






Installation

1. Install the air ventilation seat control unit and connector.
