Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel (A).

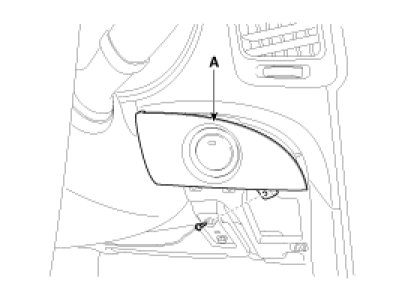

3. Remove the start/stop button cover (A) after loosening the mounting screw.

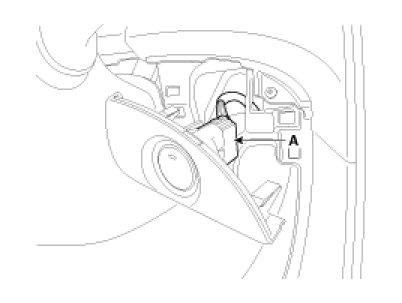

4. Disconnect the connector (A).




5. Remove the start/stop button (A) after loosening the mounting screws.






Installation

1. Install the start/stop button.
2. Install the start/stop button cover.
3. Install the crash pad lower panel.
