Repair Procedures

Inspection

Main Power Window Switch Inspection
1. Disconnect the negative (-) battery terminal.

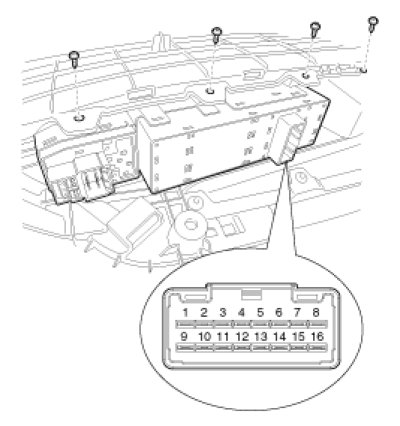

2. Remove the front door trim and power window switch.

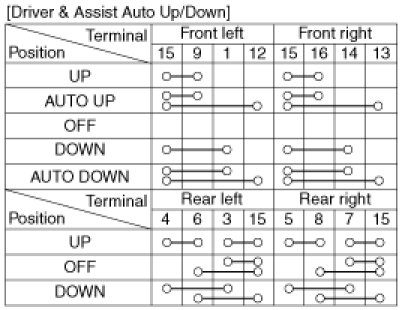

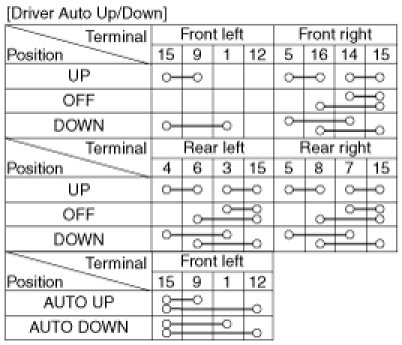

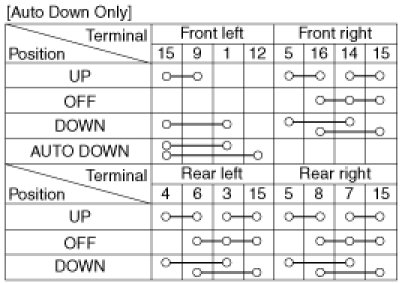

3. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.





















Passenger Power Window Switch Inspection
1. Disconnect the negative (-) battery terminal.

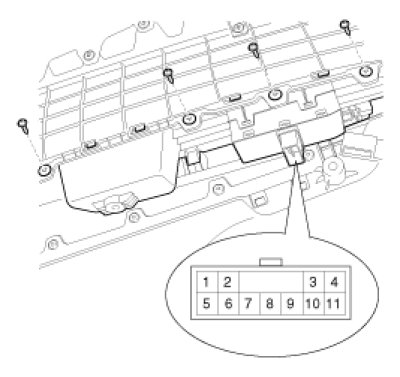

2. Remove the front door trim and power window switch.

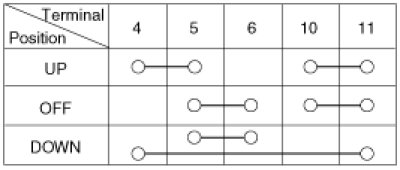

3. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.









Rear Power Window Switch Inspection
1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

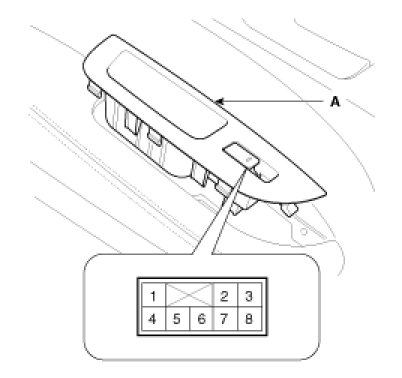

3. Remove the rear power window switch module (A).

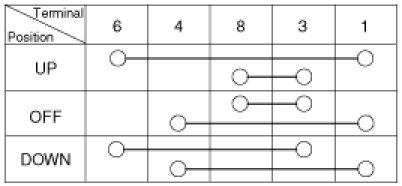

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
