Signal Circuit Inspection

Check signal circuit voltage
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. IG key ON.
4. Measure voltage between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.
  Specification : 4.8V~5.1V

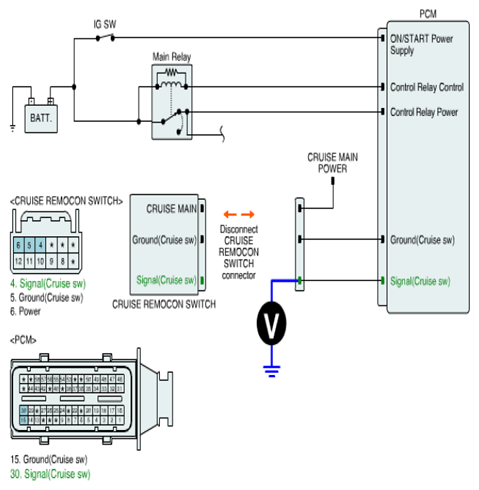

  Fig 1: Measuring Voltage Between Signal (Cruise Sw) Terminal Of Cruise Remocon Switch Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured value within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Go to " 2 Check short in signal circuit" as follows.
Check short in signal circuit
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector and PCM connector.
3. Check resistance between 'Signal (Cruise sw)' terminal and 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector.
4. Check resistance between 'Signal (Cruise sw)' terminal and 'Ground (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector.
  Specification : Infinite

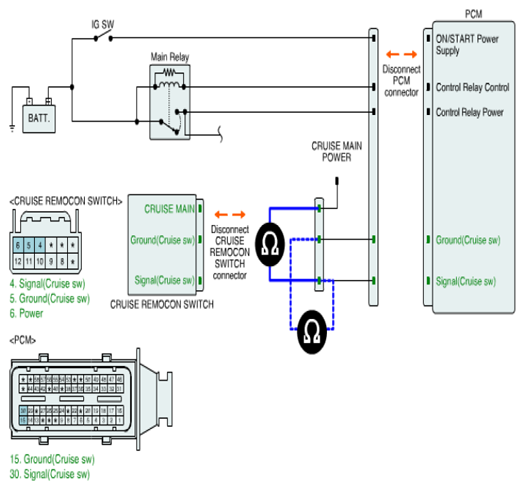

  Fig 2: Checking Resistance Between Signal (Cruise Sw) Terminal, Cruise Main Terminal Of Cruise Remocon Switch Harness Connector And Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured value within specification?
  YES
  - Go to " 3 Check open in signal circuit" as follows.
  NO
  - Repair short in signal circuit, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in signal circuit
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector and PCM connector.
3. Measure resistance between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM connector.
  Specification : Below 1.0Ω

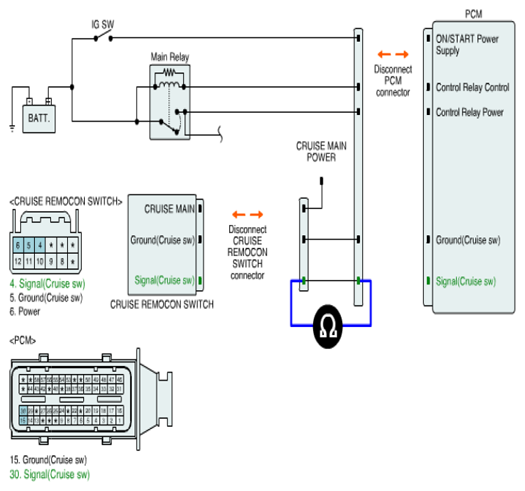

  Fig 3: Measuring Resistance Between Signal (Cruise Sw) Terminal Of Cruise Remocon Switch Harness Connector And Signal (Cruise Sw) Terminal Of PCM Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured value within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair open between 'Signal (Cruise sw)' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Signal (Cruise sw)' terminal of PCM connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
