Component Inspection

Measure resistance between power terminal and control terminal of the solenoid connector (Component side).

Specification

TEMPERATURE RESISTANCE REFERENCE CHART

Temp.(°C)	Temp.(°F)	Resistance (Ω)	Temp.(°C)	Temp.(°F)	Resistance (Ω)
0	32	6.2 ~ 7.4	60	140	8.0 ~ 9.2
10	50	6.5 ~ 7.7	70	158	8.3 ~ 9.5
20	68	6.9 ~ 7.9	80	176	8.6 ~ 9.8
30	86	7.1 ~ 8.3	90	194	8.9 ~ 10.1
40	104	7.4 ~ 8.6	100	212	9.2 ~ 10.4
50	122	7.7 ~ 8.9

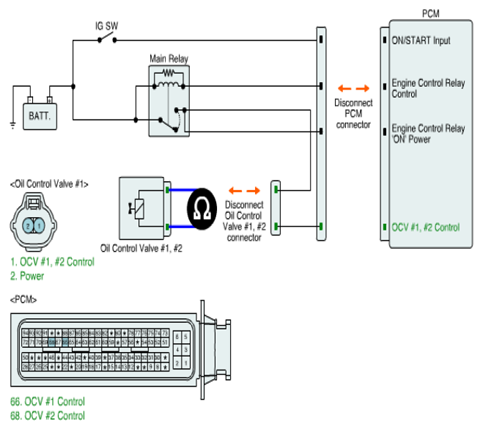

Fig 1: Measuring Resistance Between Power Terminal And Control Terminal Of Solenoid Connector (Component Side)

Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specification?
YES
- Go to next step as below.
NO
- Check oil control valve for contamination, deterioration, or damage. Substitute with a known-good solenoid and check for proper operation. If the problem is corrected, replace solenoid and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
